SPECIAL STAIRCASES

With a great focus placed on form and design, customised staircases are tailor-made based on the customer’s wishes. We support you from idea to reality.

SPECIAL STAIRCASES

With a great focus placed on form and design, customised staircases are tailor-made based on the customer’s wishes. We support you from idea to reality.


A special staircase is made-to-measure based on the customer’s requests. It is often characterised by strict requirements for both form and design. This type of staircase can be manufactured in a number of different versions and combinations.

A special staircase can be necessary when the location for the staircase has special geometric or architectural requirements. Weland’s special staircases all have in common that they are adapted to the customer’s needs. With our long experience and solid expertise, we can help you create the staircase you’re looking for.

Read more about our different types of special staircases below. Contact us for help with planning and ordering staircases.

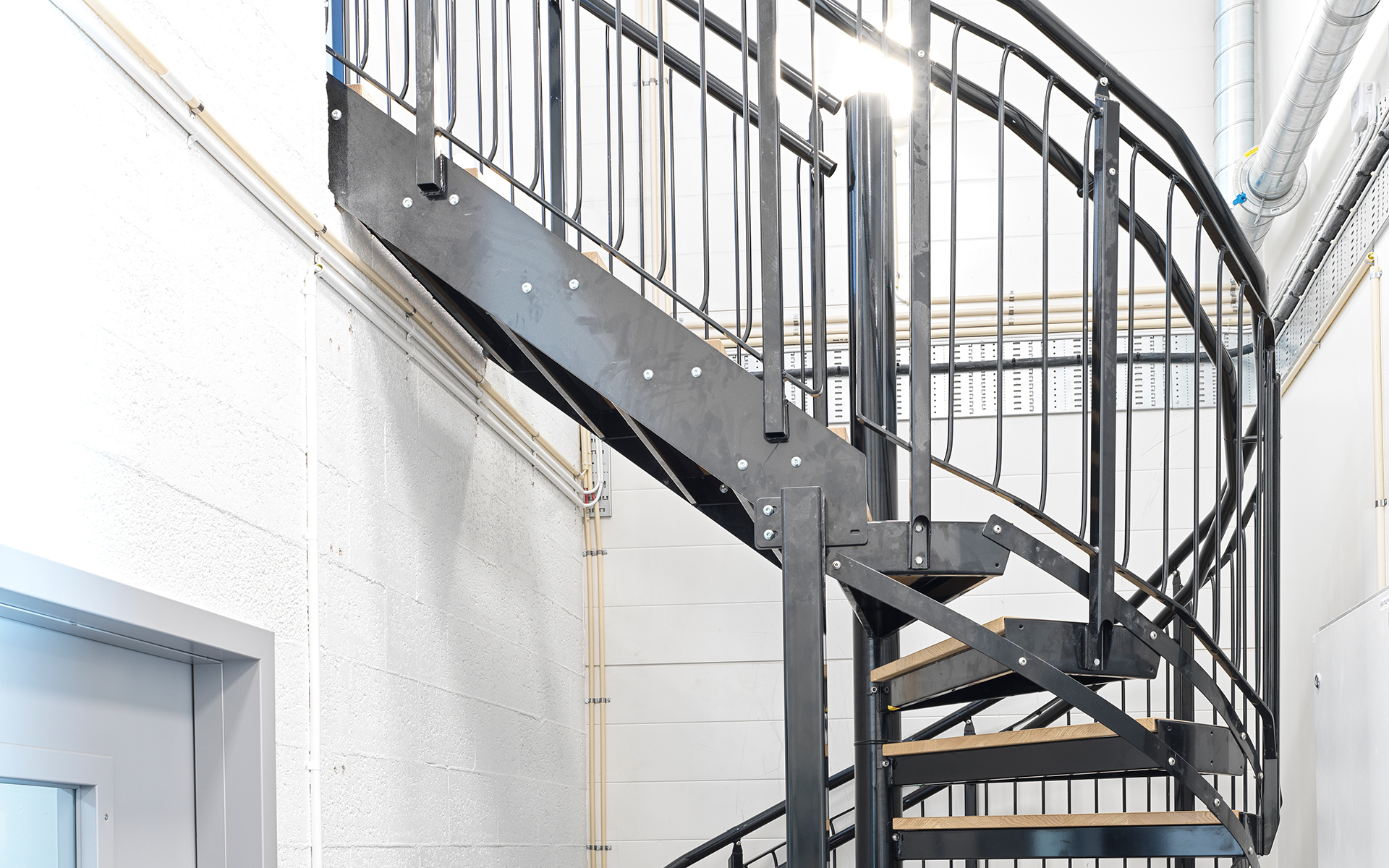

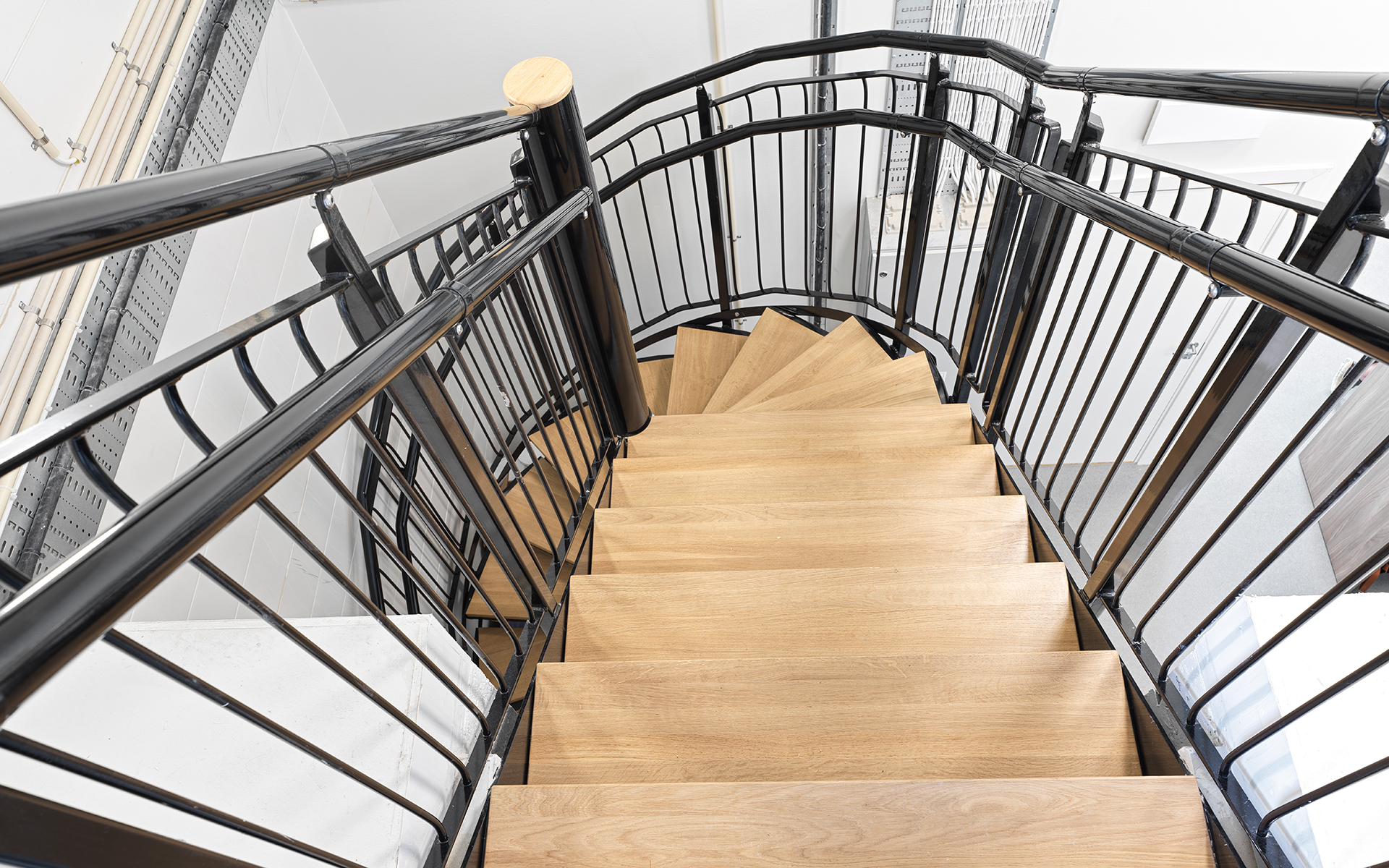

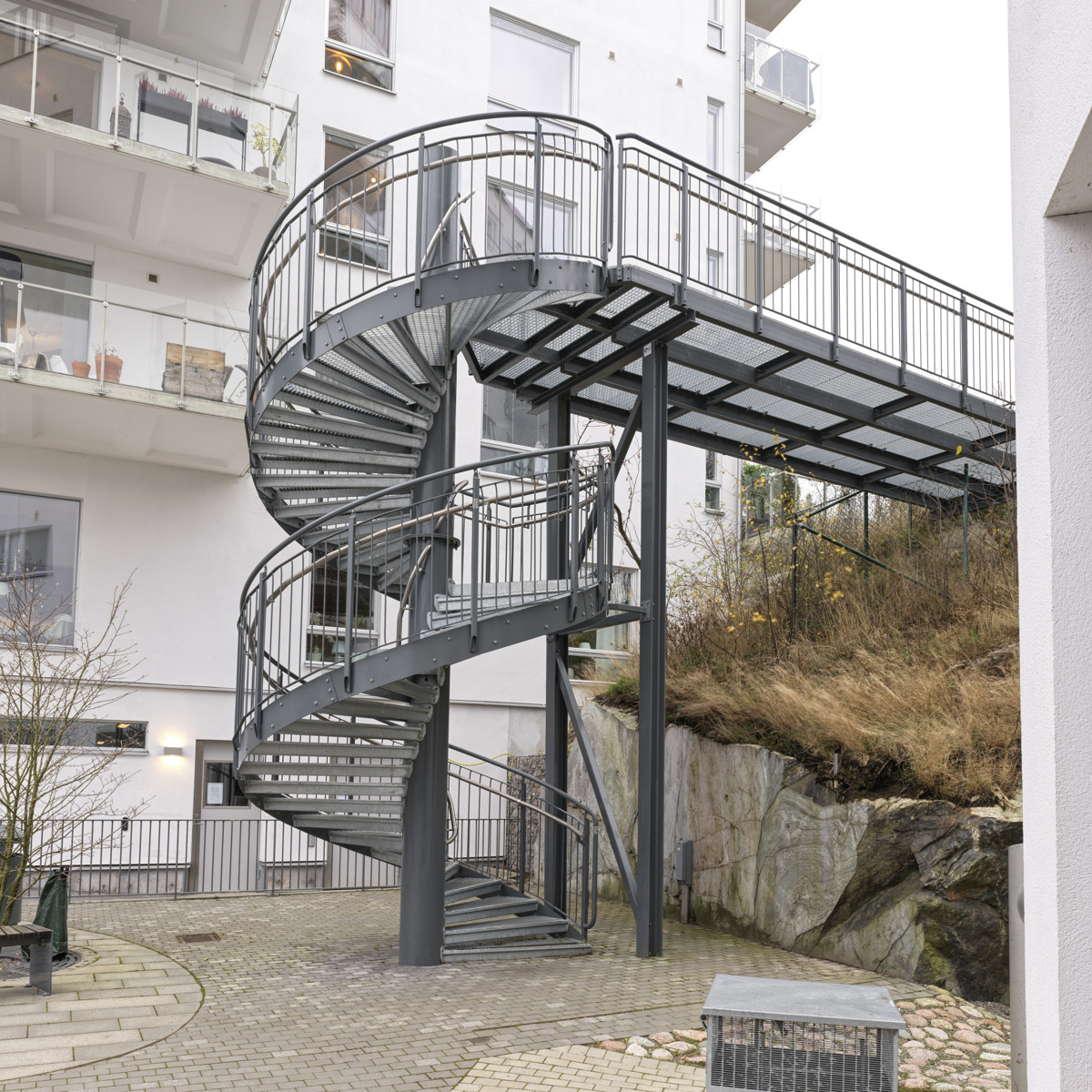

Combi-stairs

Weland combi-stairs are a combination of a straight staircase and a spiral staircase. In the curved section of the staircase, the stair treads are manufactured to follow the radius of the staircase. Combines with stair treads and railings from our standard range.

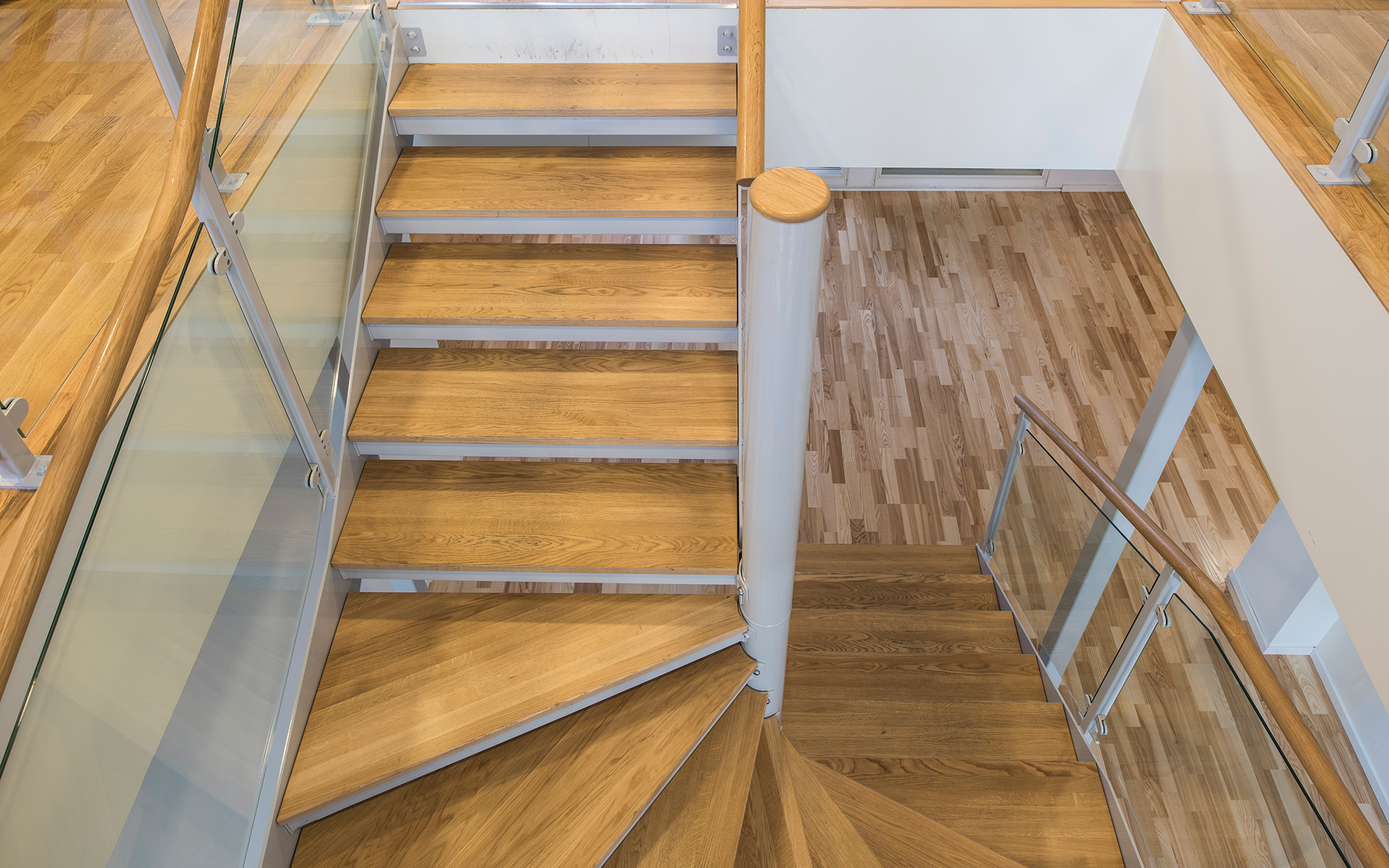

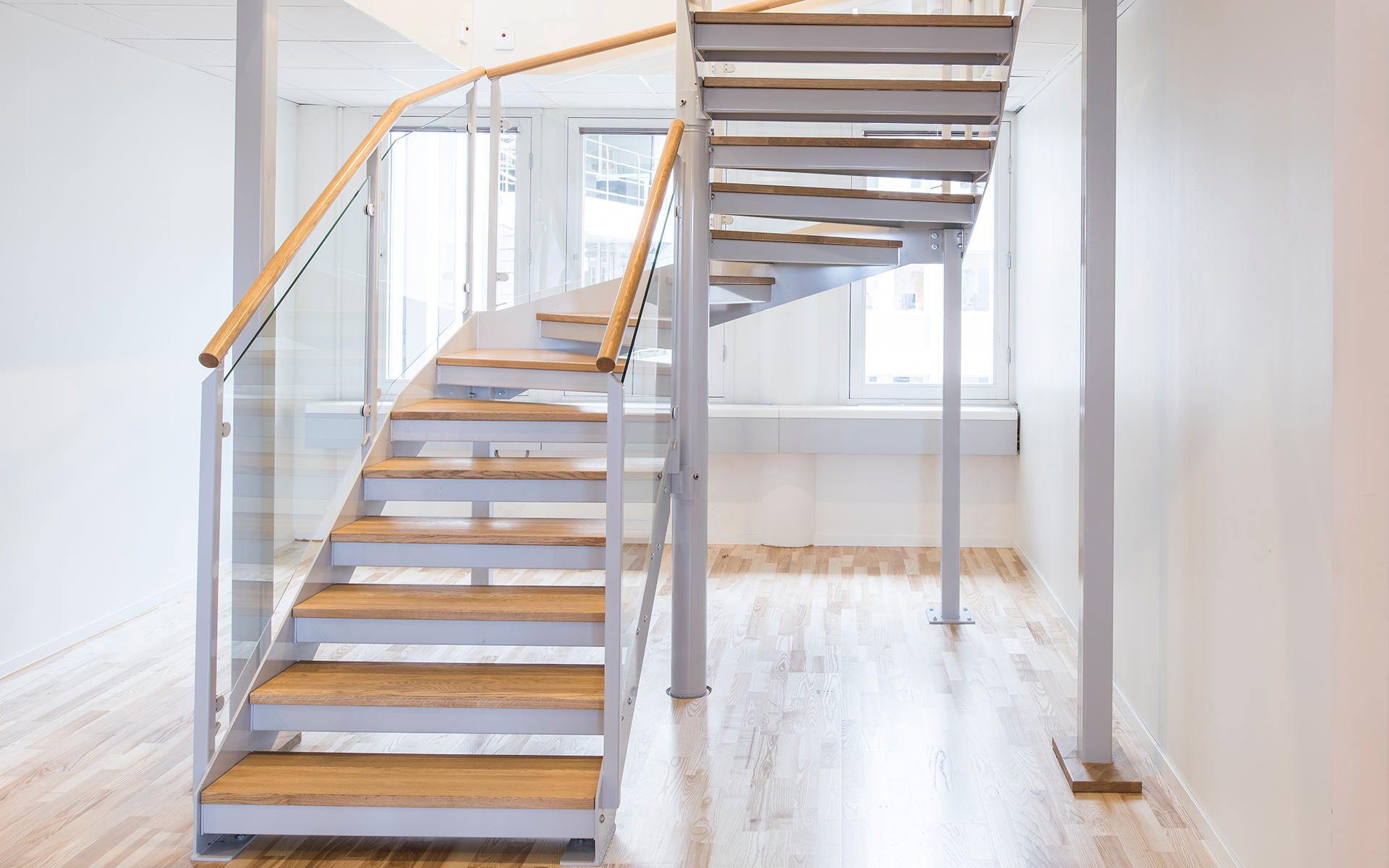

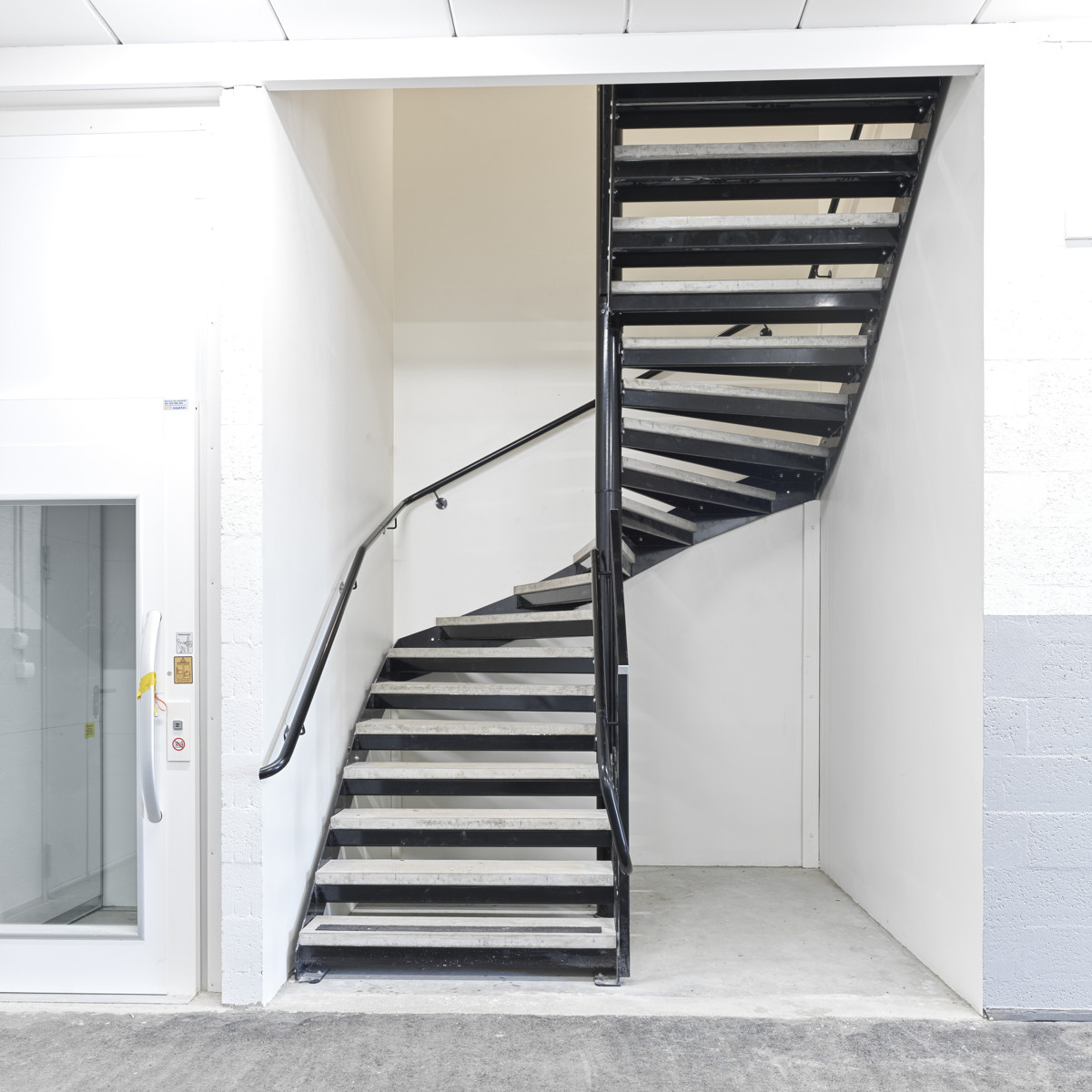

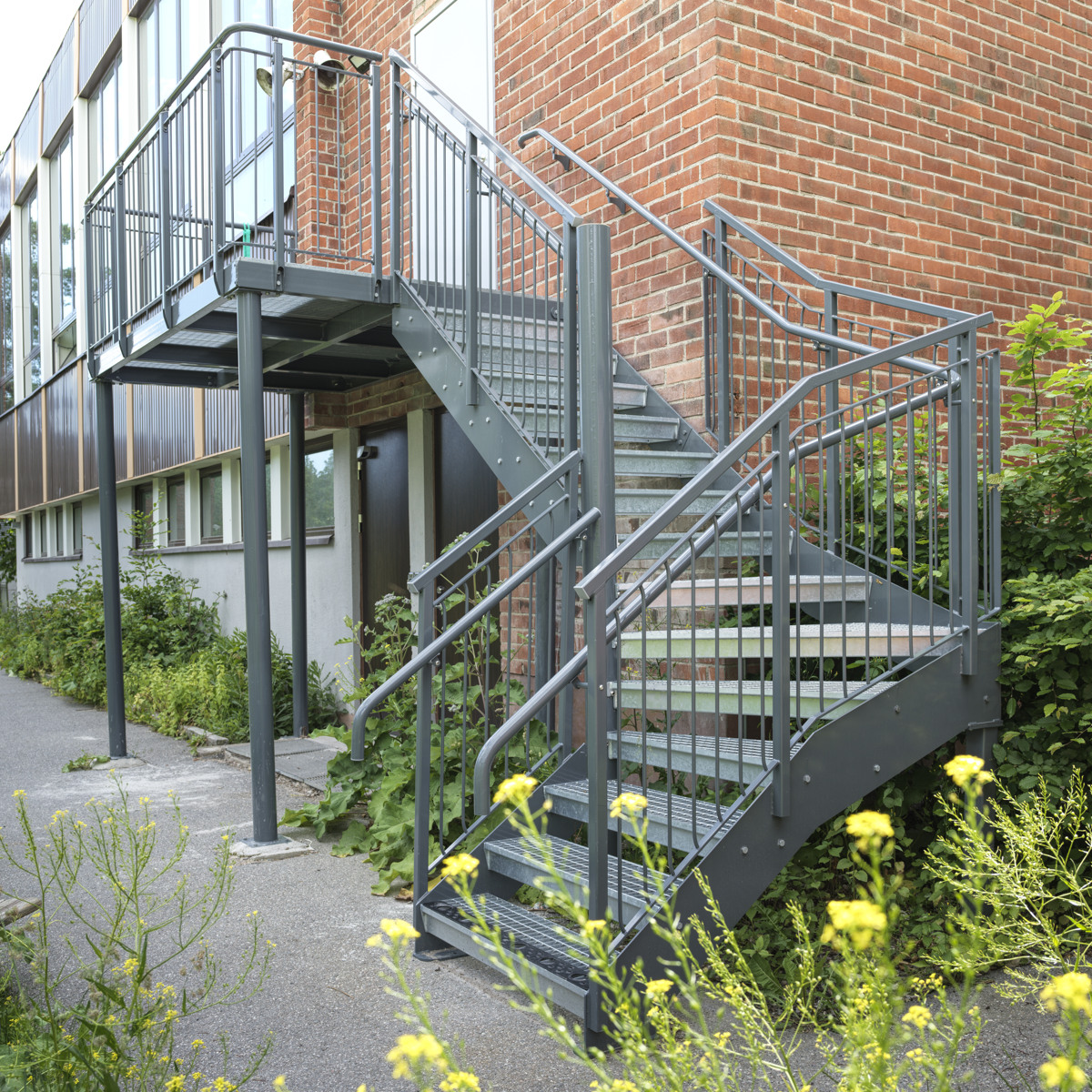

Corner staircases

Weland combi-stairs are a combination of a straight staircase and a spiral staircase. The stair treads are manufactured with treads that go out to adjoining walls and with stringers that form right-angles. Combines with stair treads and railings from our standard range.

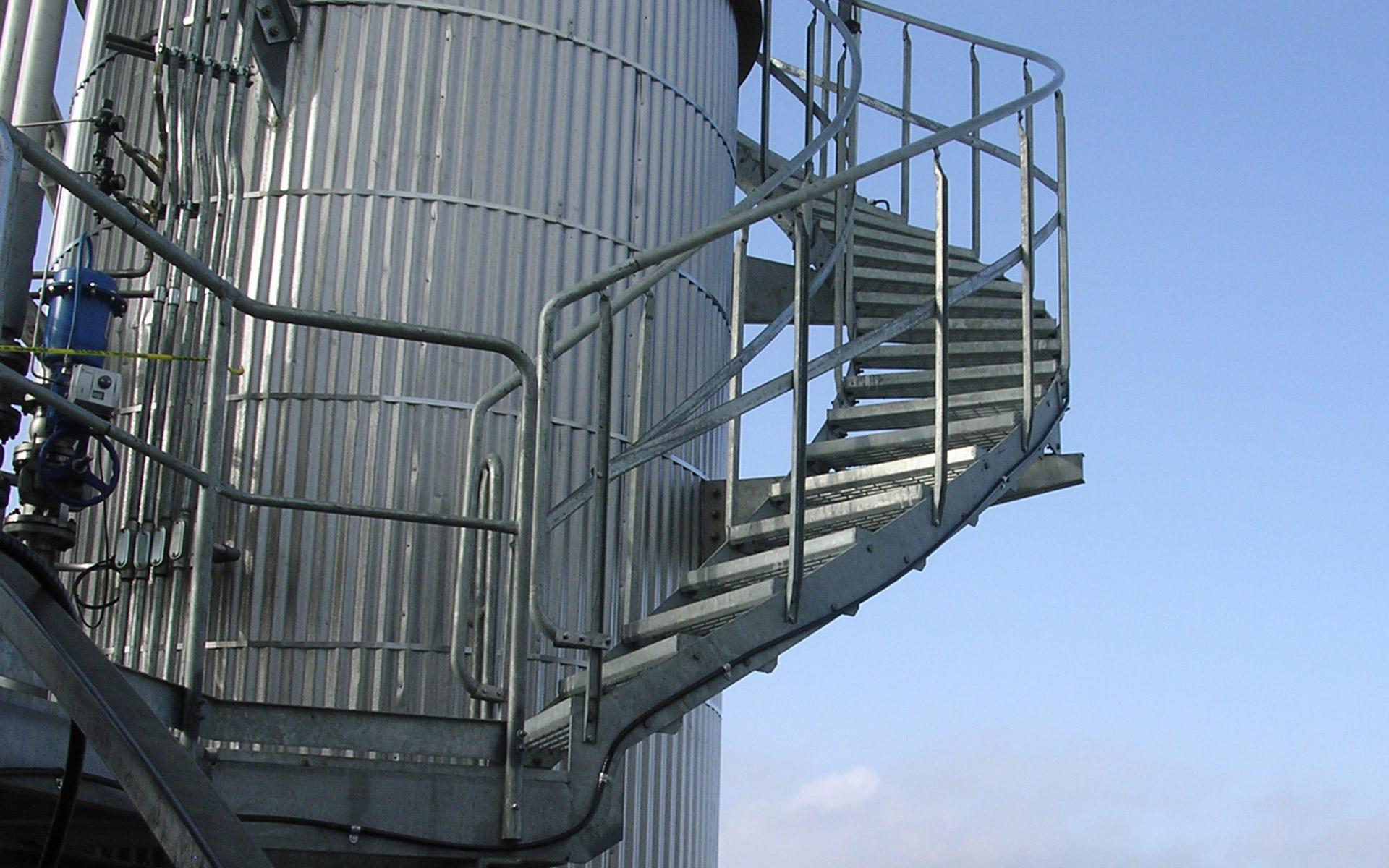

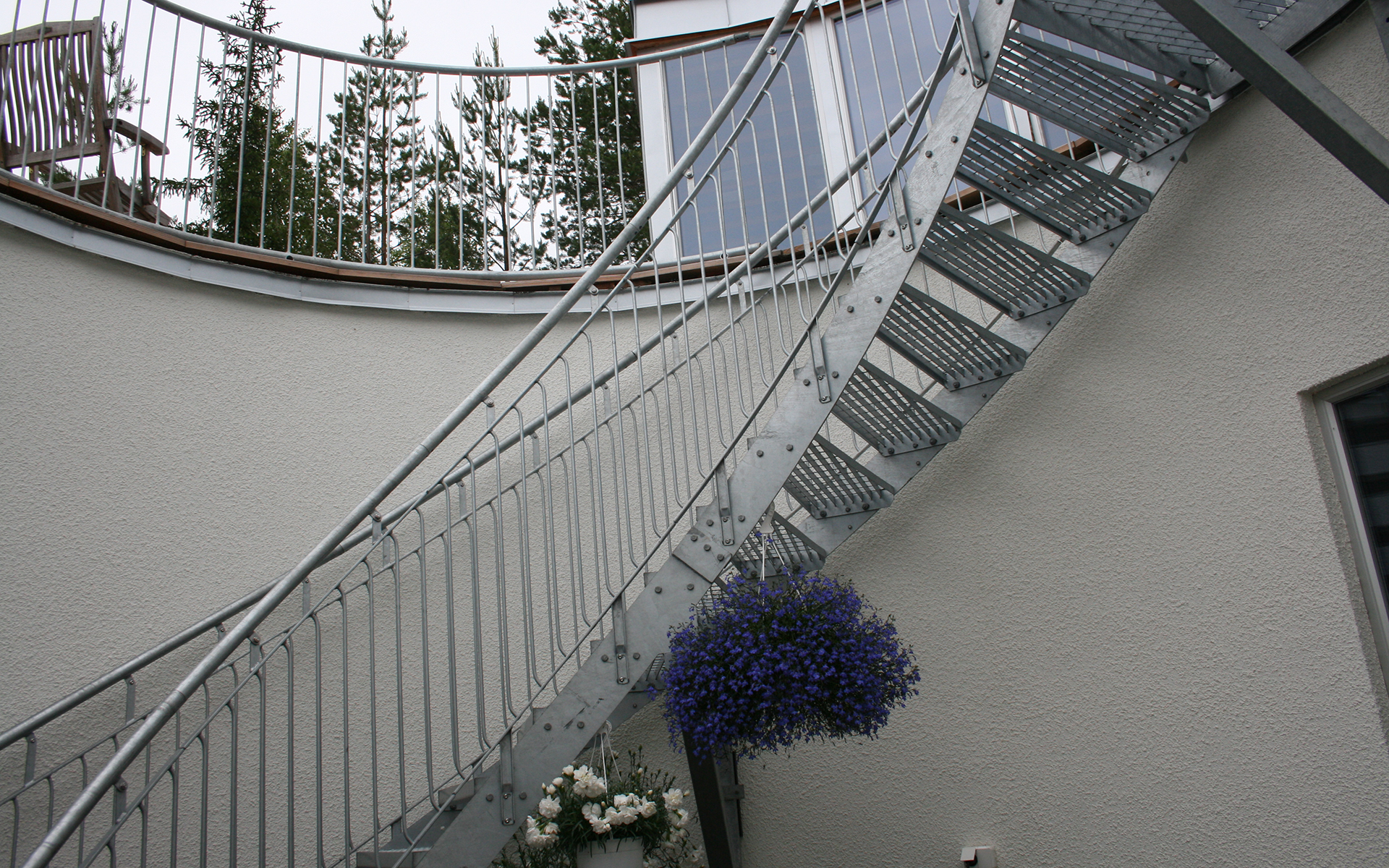

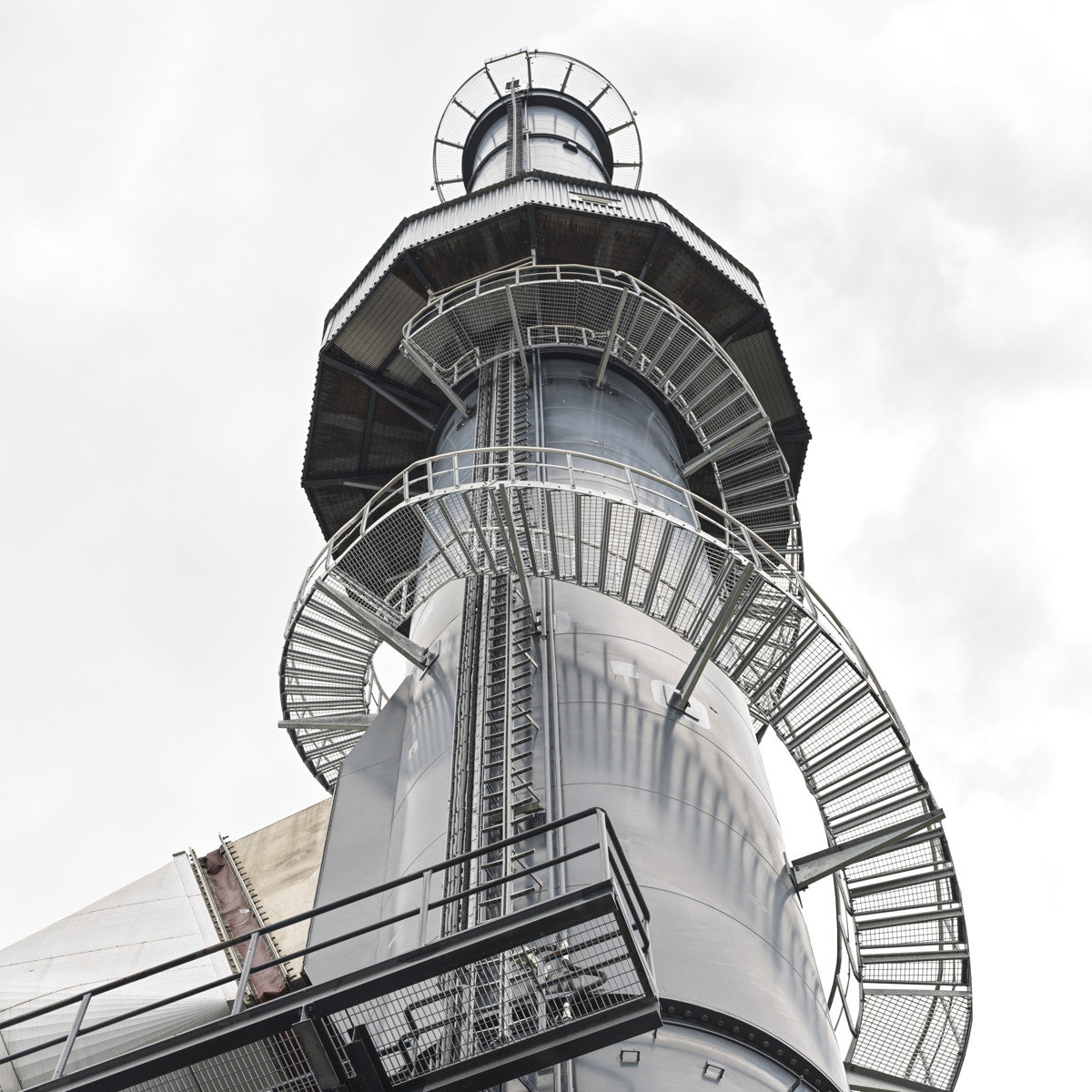

Winding staircases

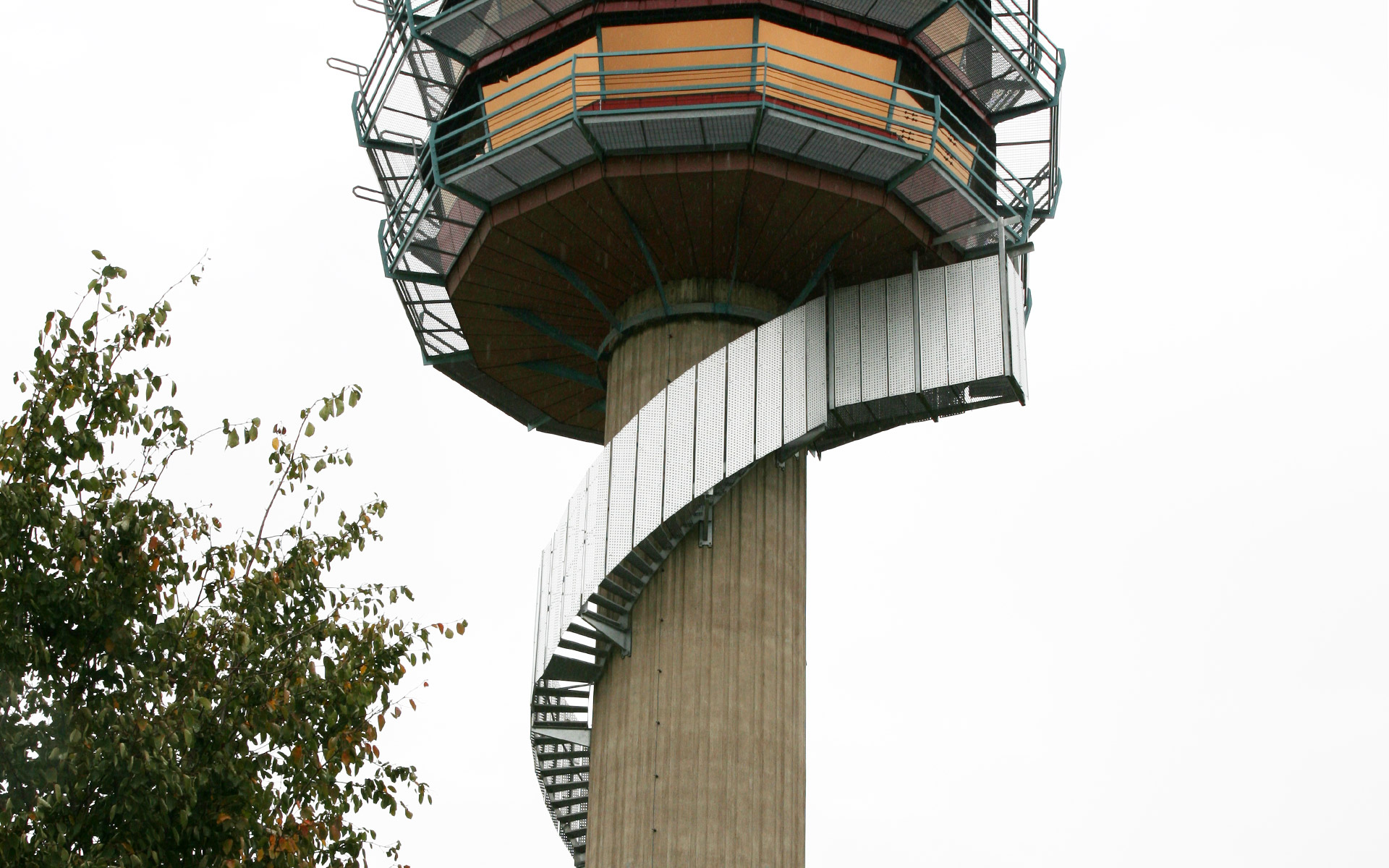

Winding stairs are manufactured with curved stringers. Stair treads and railing are available in the same combinations as for spiral staircases. For example, the staircases can follow a silo on the outside or the inside.

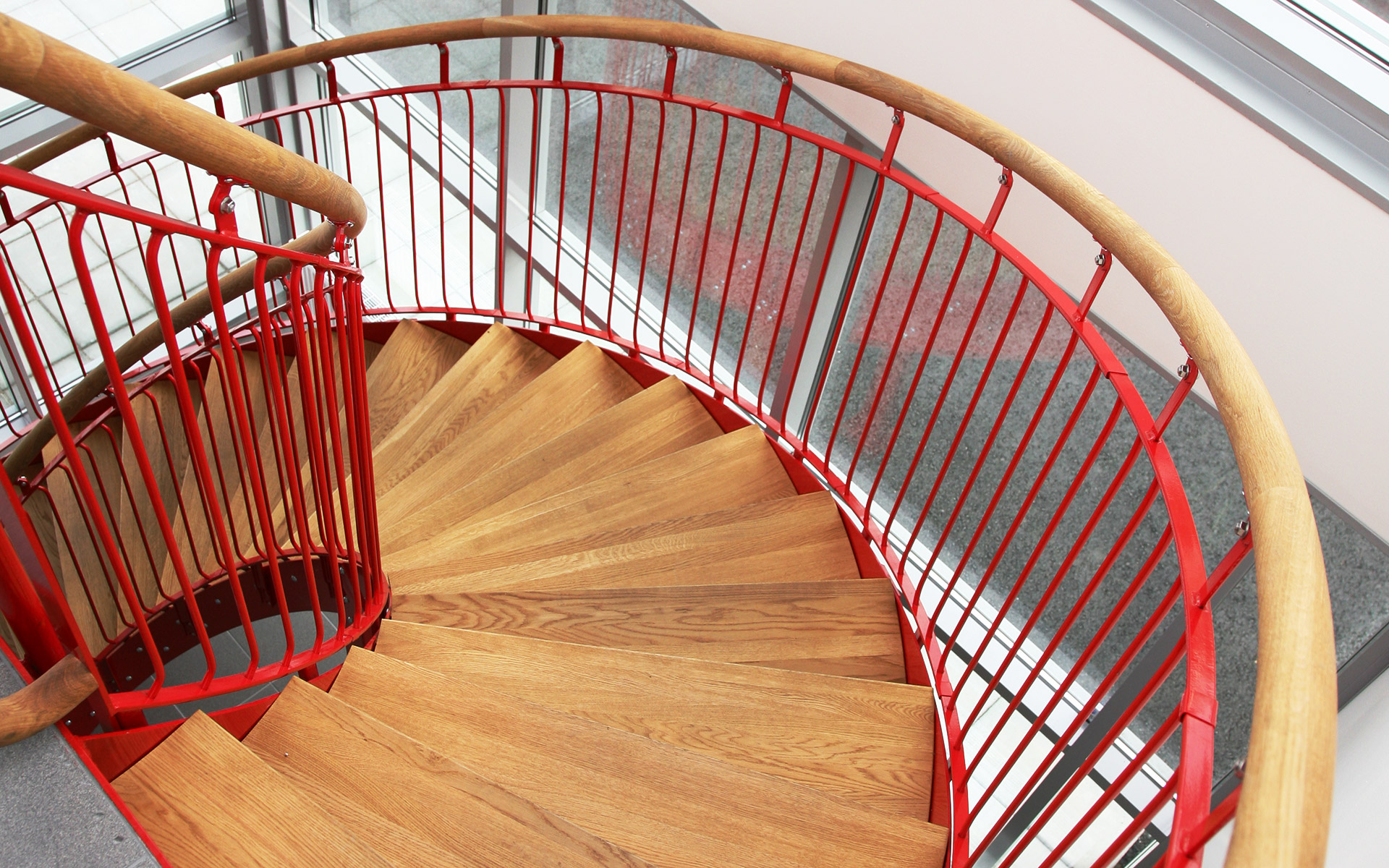

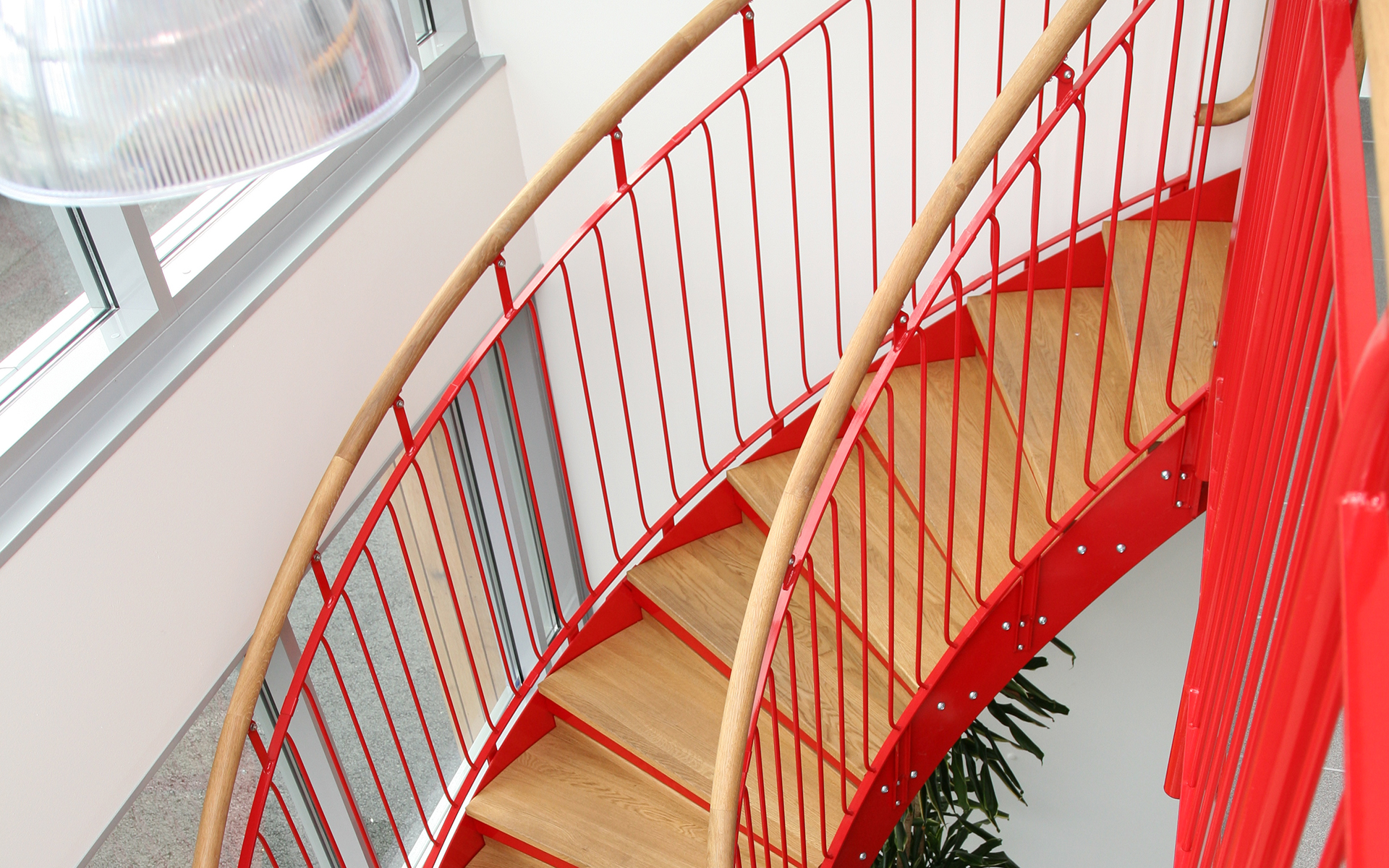

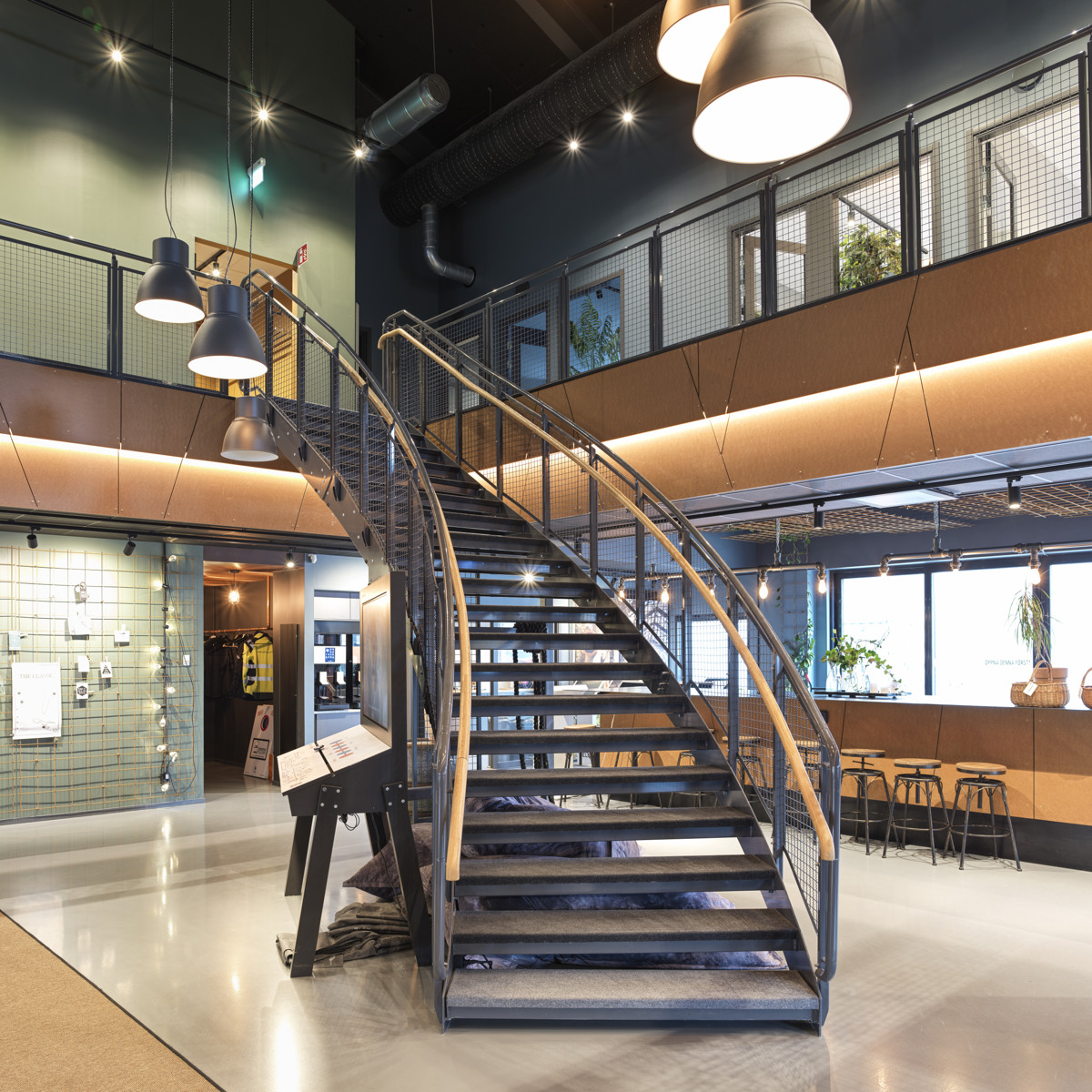

Curved staircases

Curved staircases with stringers are made to order. Stair treads and the railings are available in the same combinations as for spiral staircases.

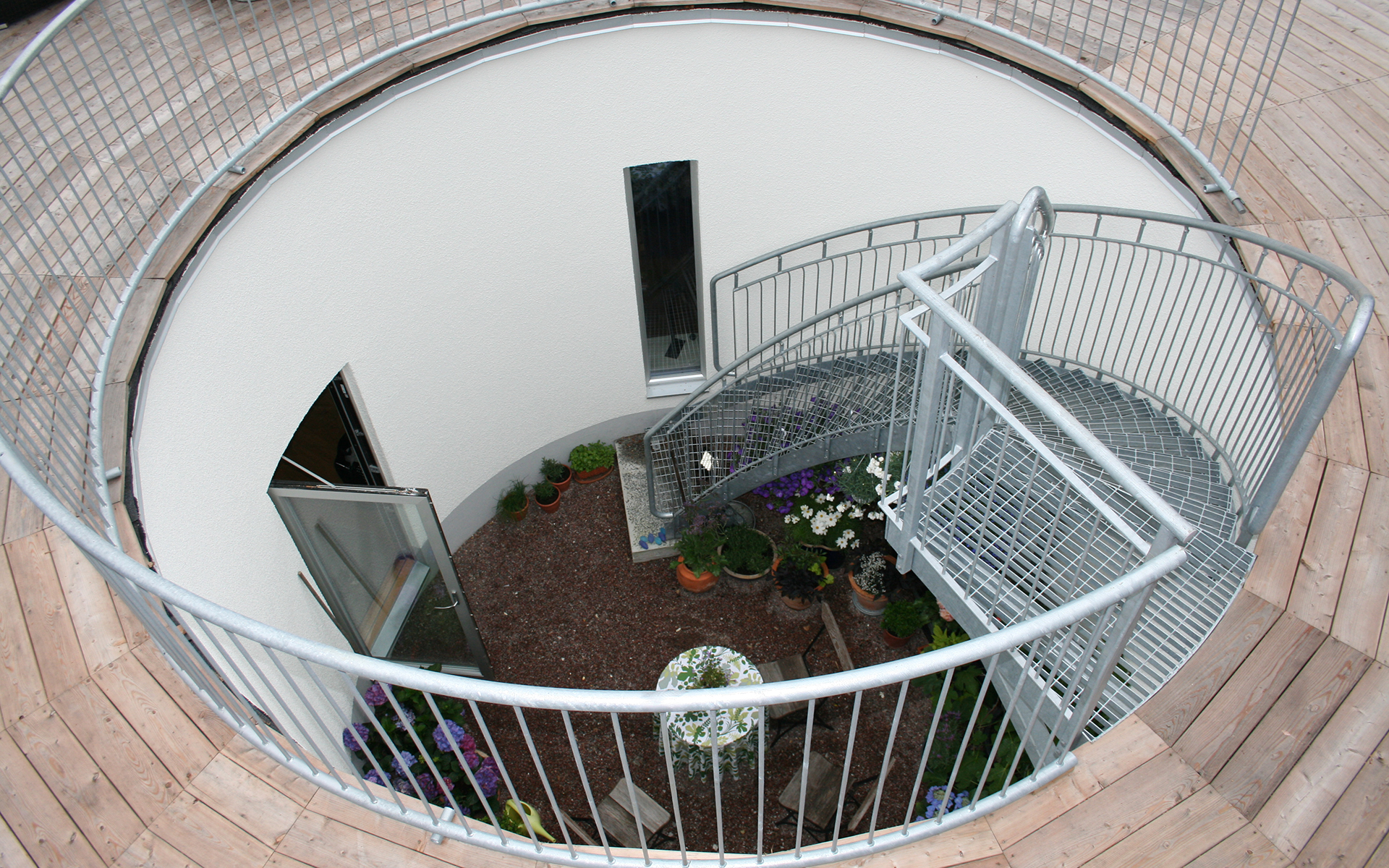

Special Spiral Staircases

We also manufacture spiral staircases with, for example, extra strength centre tubes – Other alternatives could include larger radius or customised railings. Can, of course, also be combined with our stair treads and railings from our standard range.


Slope staircase

As a complement to our straight stairs, we also offer a self-draining staircase for placement in sloping terrain. By self-draining, we mean that the step surface is filled up with gravel or other similar material so that rainwater easily flows through. The stairs are made with string profiles of flat bar and standing step strips that hold draining material in place. Our slope stairs are delivered with railing type Standard and in hot-dip galvanized design.

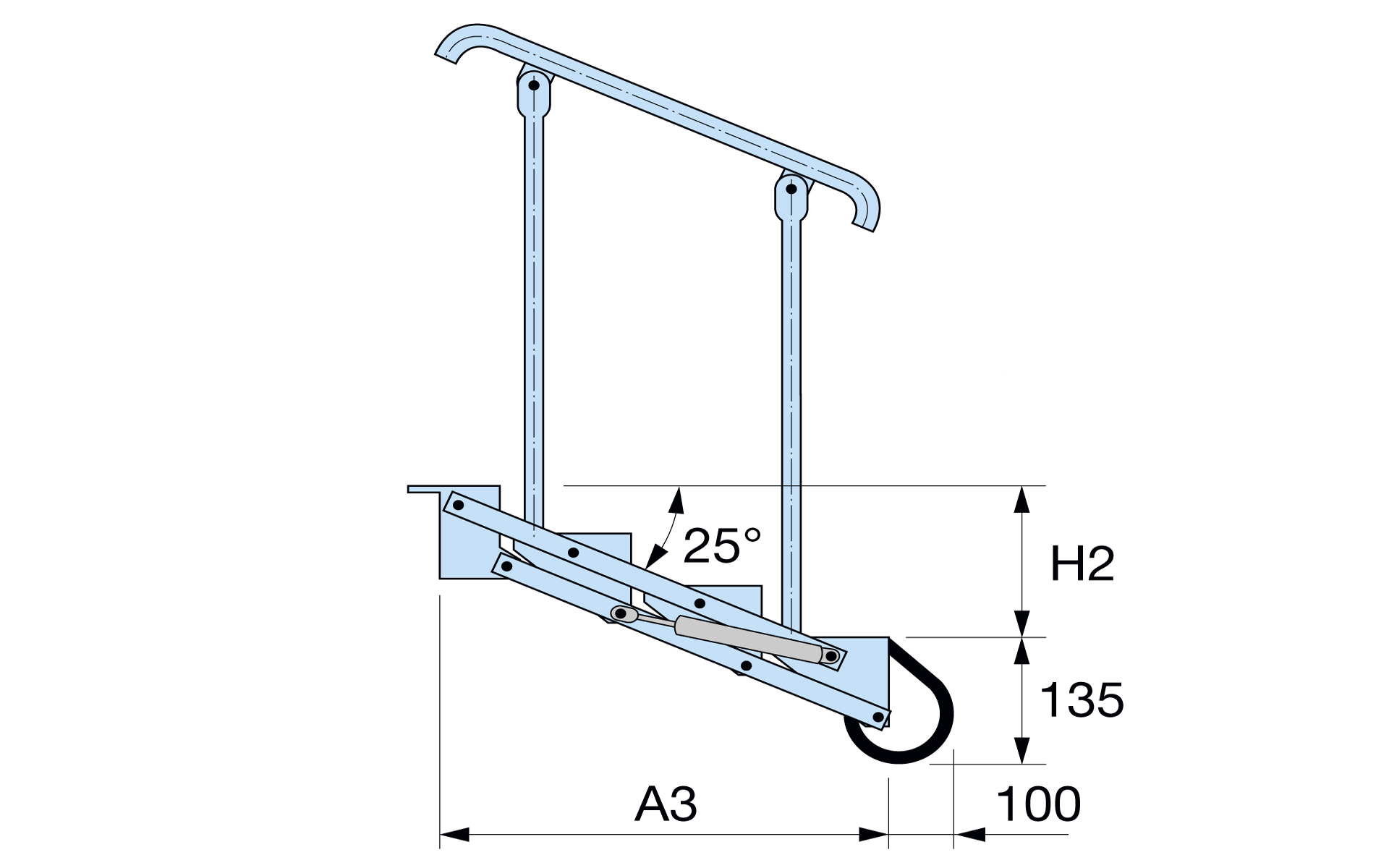

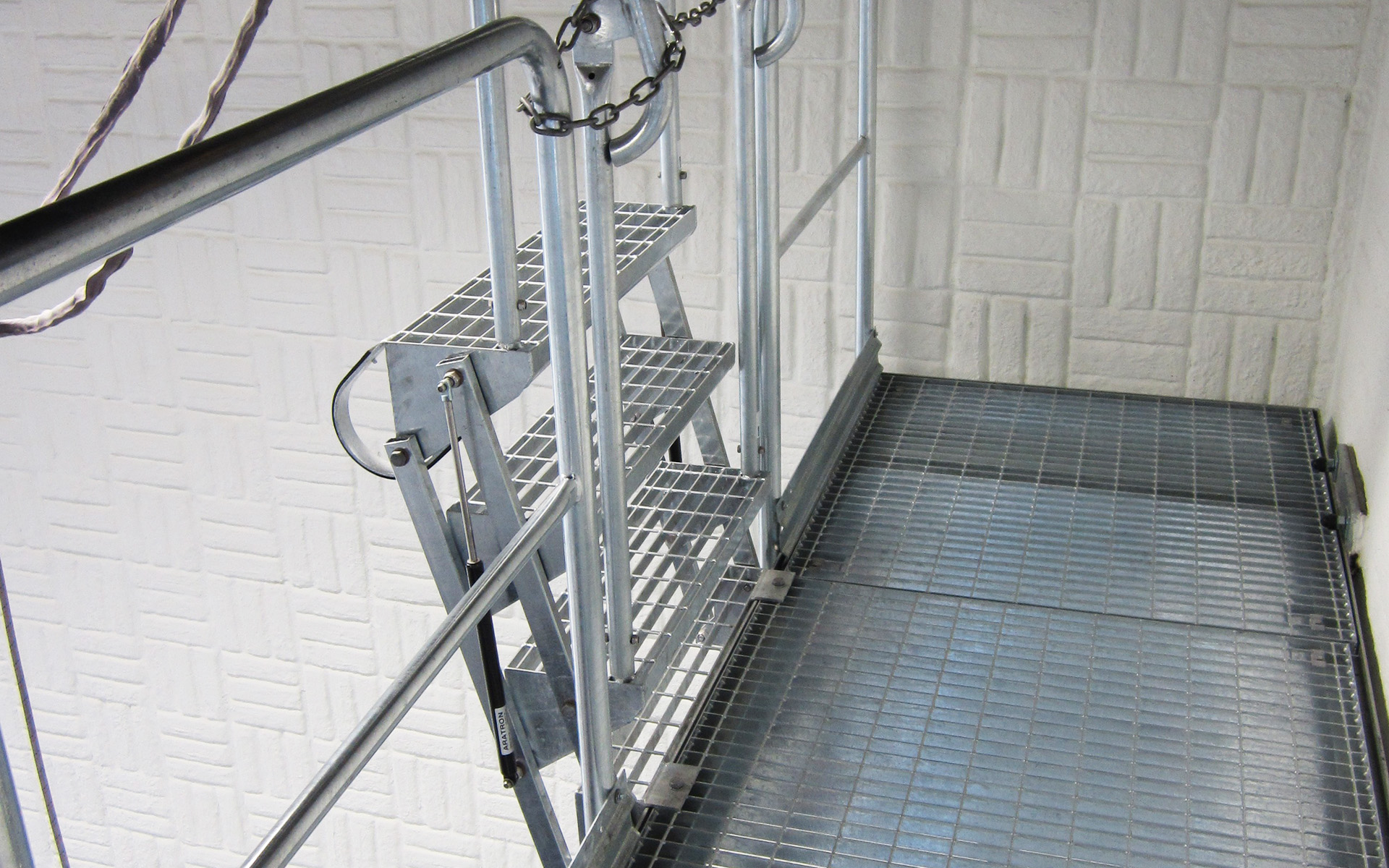

Folding staircase

Our folding staircase is an excellent alternative to a permanent structure, where there are variable differences in level, for example, down to hatches on tankers. The folding staircase is primarily used in the petrochemical industry, but also in environments where a permanent staircase design is not possible. The folding staircase, which are jointed, consist of a number of grating treads with parallel stringers, rubber clad support bellows, railings on both sides as well as the fixings. Two dampers on the side, makes the stair easy to handle. Folding staircase are supplied ready assembled and are stocked with 3, 4, 5 and 6 treads. The folding staircase is held in stock for immediate delivery.

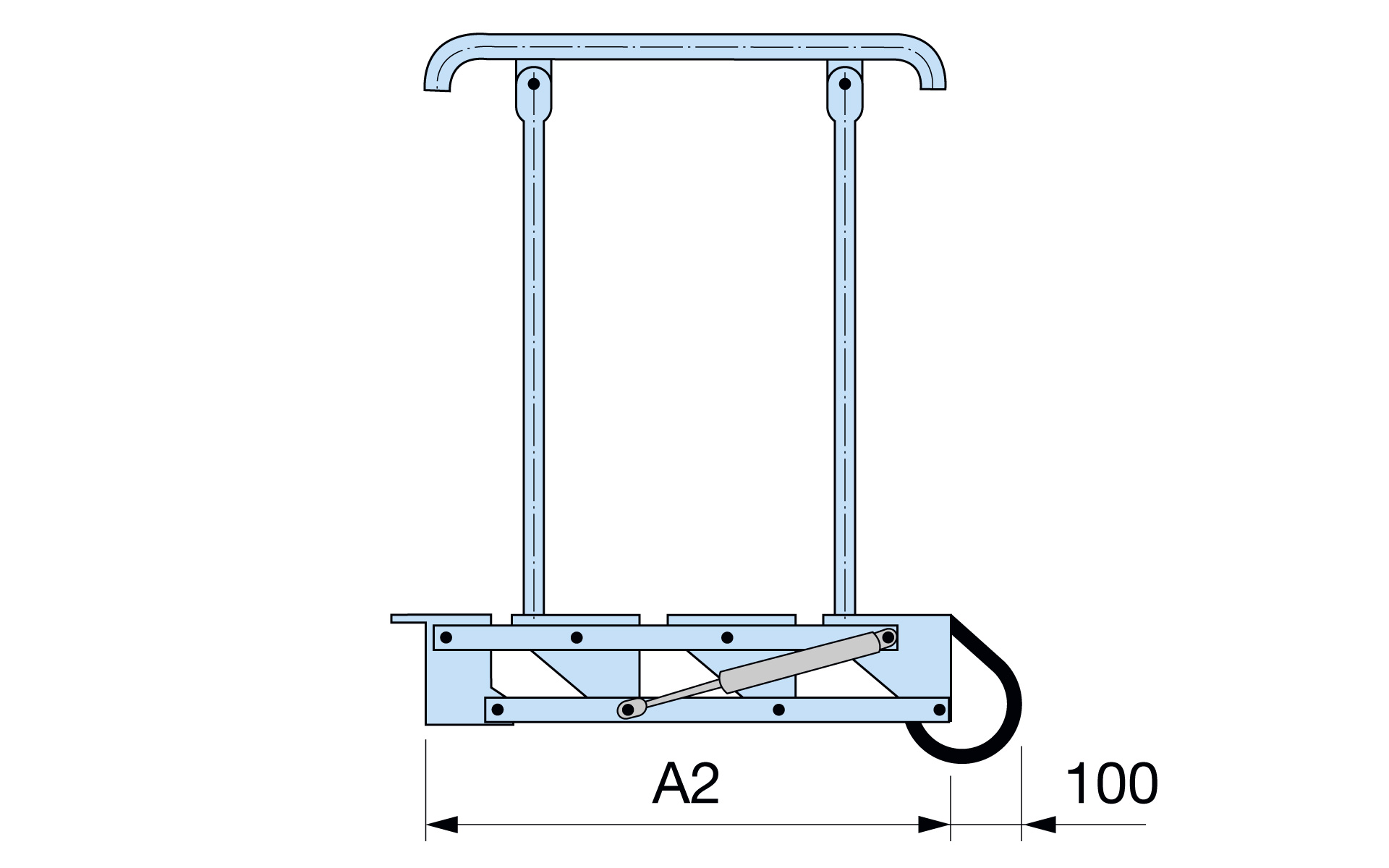

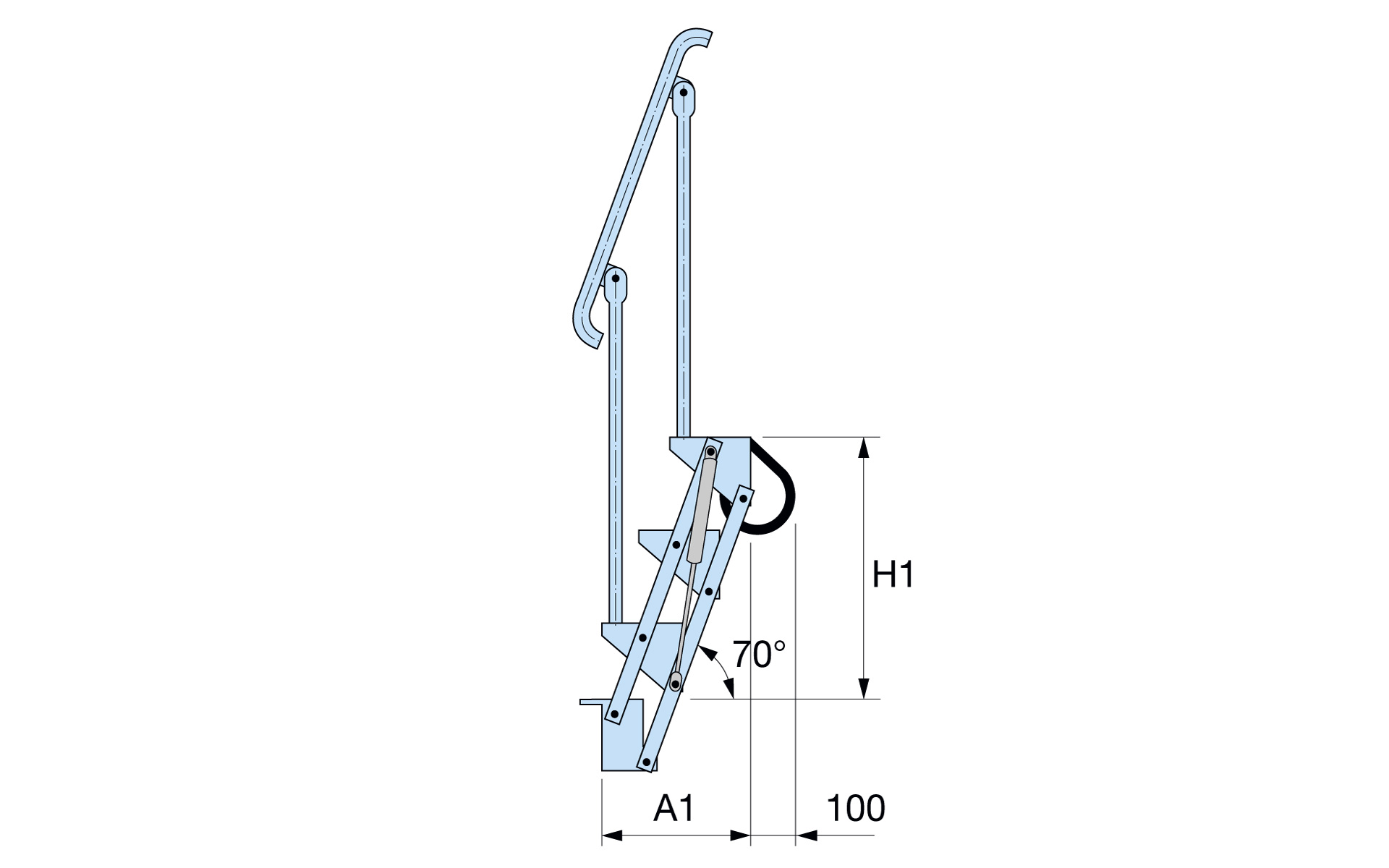

Finish: Hot dip galvanized

Number
of
treads
Part No. A1-
measure
(mm)
A2-
measure
(mm)
A3-
measure
(mm)
H1-
measure
(mm)
H2-
measure
(mm)
Max.
width
Stocked
3 treads 181310101 373 830 756 637 289 825
4 treads 181410101 455 1070 974 862 391 825
5 treads 181510101 537 1310 1191 1088 492 825
6 treads 181610101 619 1550 1409 1314 594 825
