UNIVERSAL RAILING

Weland universal railing is a flexible railing that is very suitable for industrial use but is also available in a childproof version.

UNIVERSAL RAILING

Weland universal railing is a flexible railing that is very suitable for industrial use but is also available in a childproof version.


With many standard lengths, our universal railing can be combined into a myriad of different solutions. The railings are stocked and can be delivered quickly.

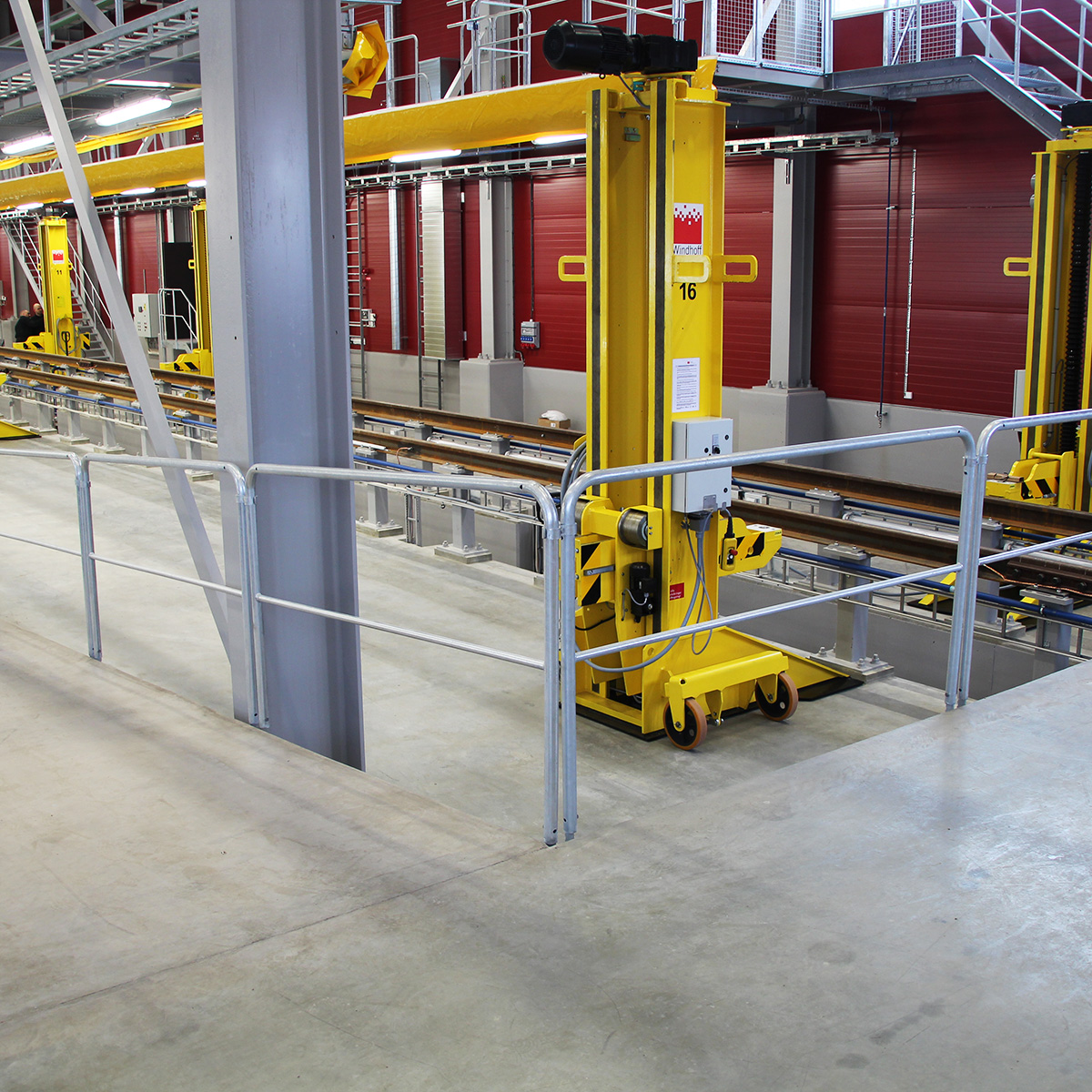

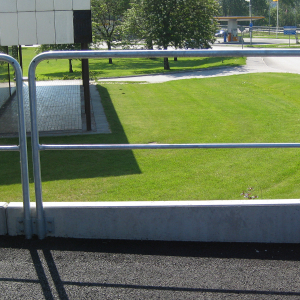

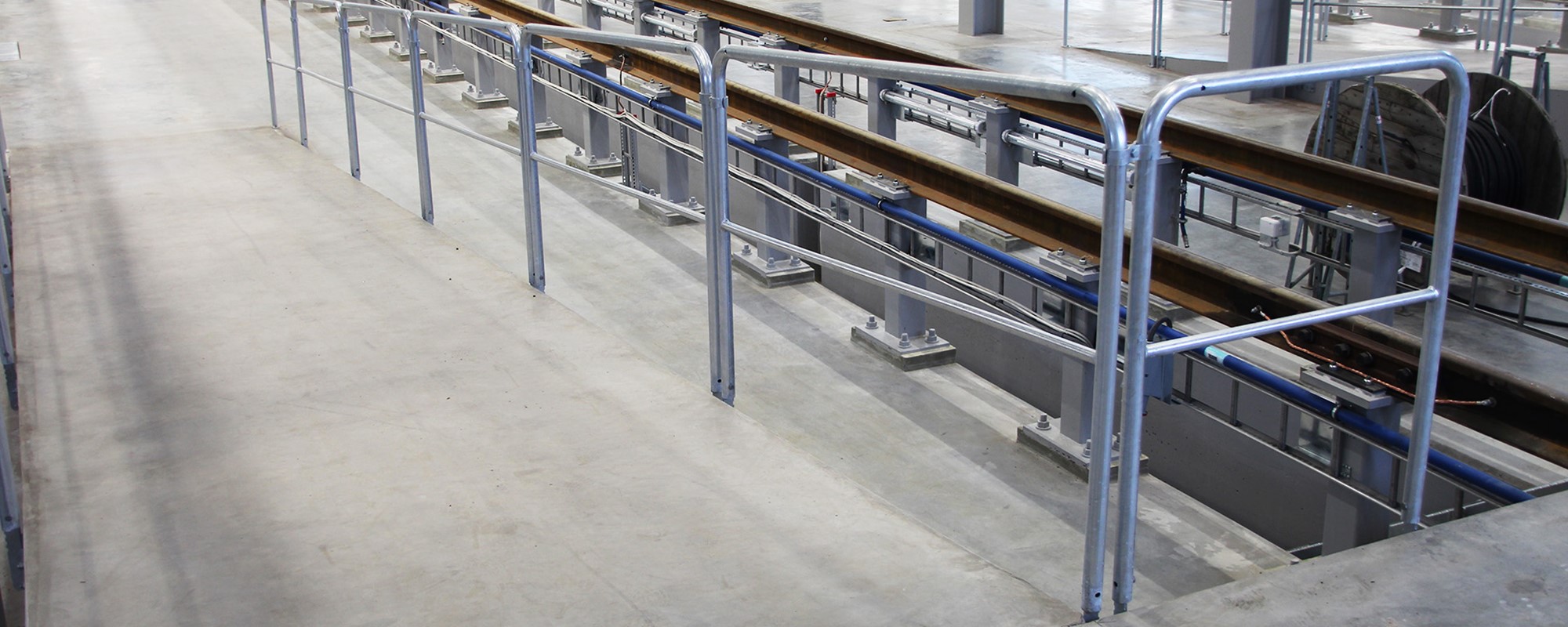

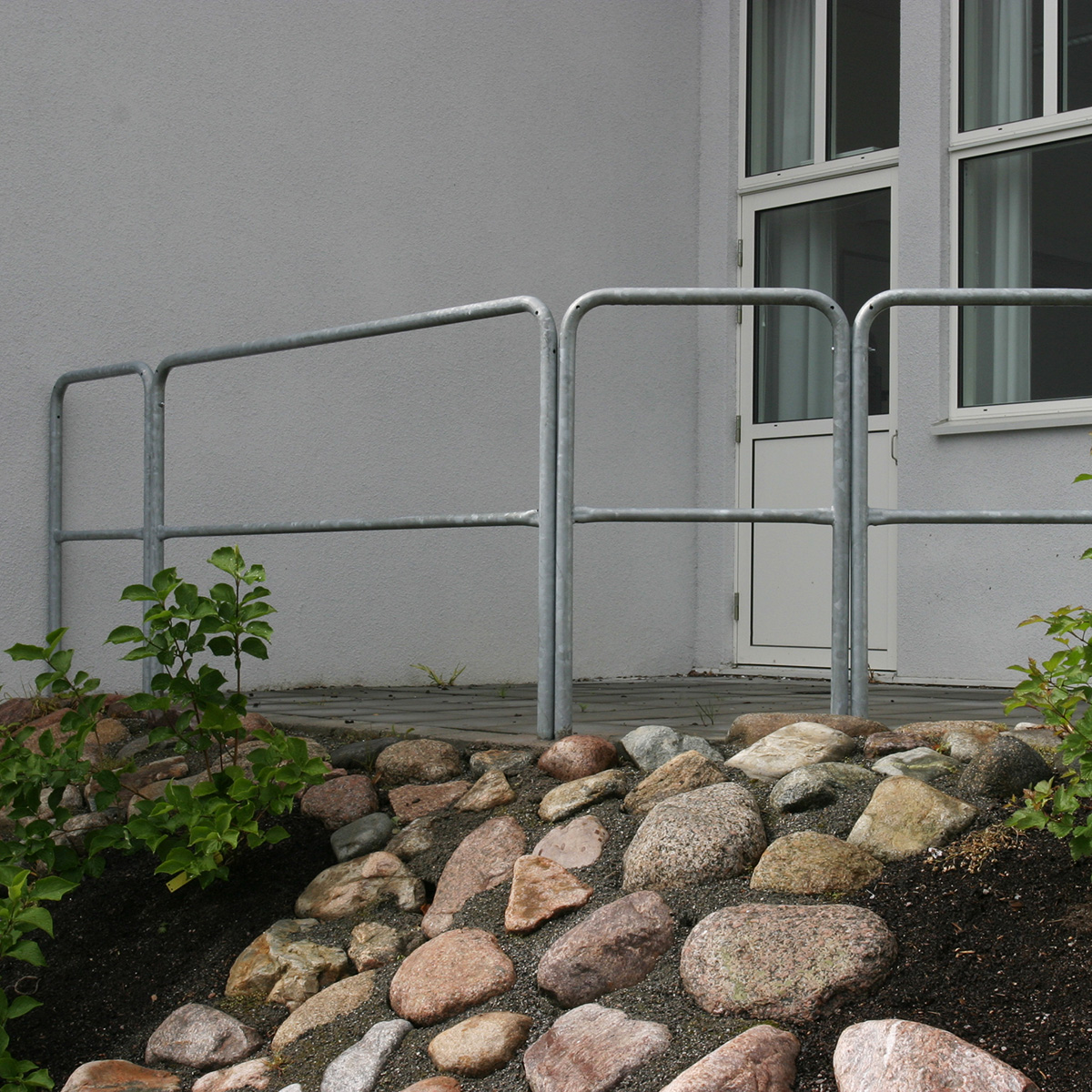

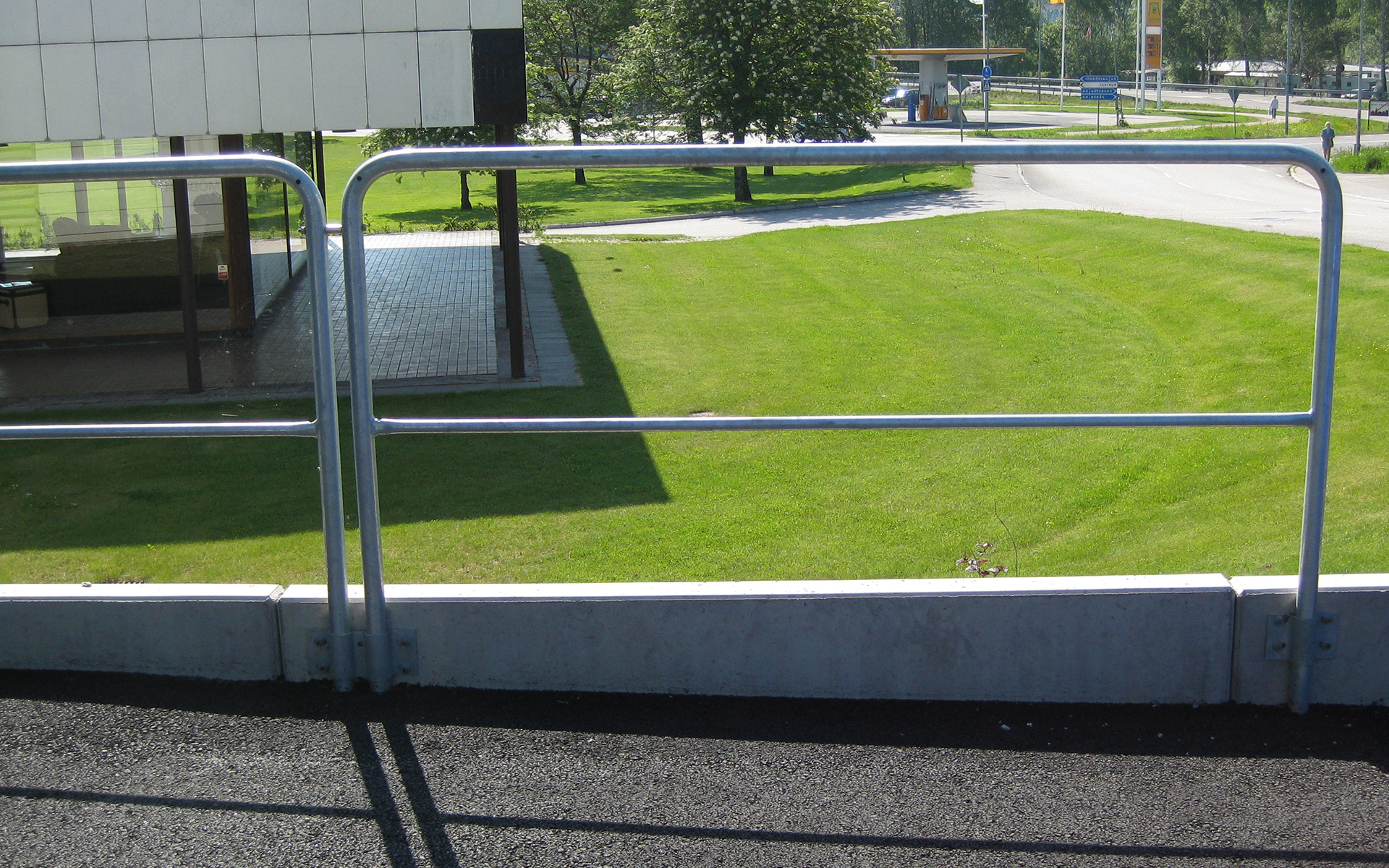

Universal railing

The railing bows are produced in large series using rational methods, which means that the price is extremely competitive. The railings, fixing components and other accessories, such as kick strips and couplings, are stocked items. Various options are specified on our design page.

Baluster/top rail: Ø 42 mm
Bottom rail: Ø 28 mm
Height: 1100 mm
Finish: Hot dip galvanized

Name *Length (mm) Part no. Stocked
Universal railing Standard 365 UI0442
Universal railing Standard 465 UI0542
Universal railing Standard 665 UI0742
Universal railing Standard 965 UI1042
Universal railing Standard 1465 UI1542
Universal railing Standard 1965 UI2042
Universal railing Corner 365 x 365 UI4042

* Length is based on outside dimensions.

* Length is based on outside dimensions.

Baluster/top rail: ø 42 mm
Bottom rail:
 ø 28 mm
Intermediate baluster:
ø 11 mm
Height:
1100 mm
Finish:
Hot dip galvanized

Name *Length (mm) Part No. Stocked
Universal railing, Childproof 365 UB0442
Universal railing, Childproof 465 UB0542
Universal railing, Childproof 665 UB0742
Universal railing, Childproof 965 UB1042
Universal railing, Childproof 1465 UB1542
Universal railing, Childproof 1965 UB2042
Universal railing, Childproof Corner 365 x 365 UB4042

* Length is based on outside dimensions.


Accessories

To increase the safety and accessibility of the railing we offer a number of extra accessories to simplify these aspects.

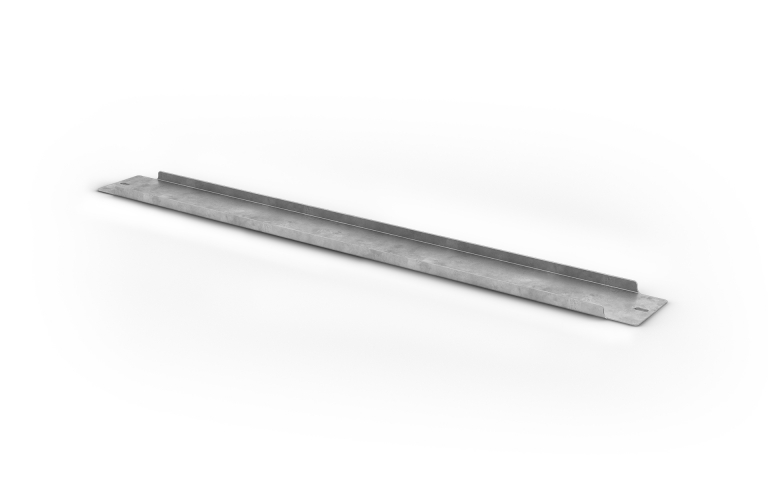

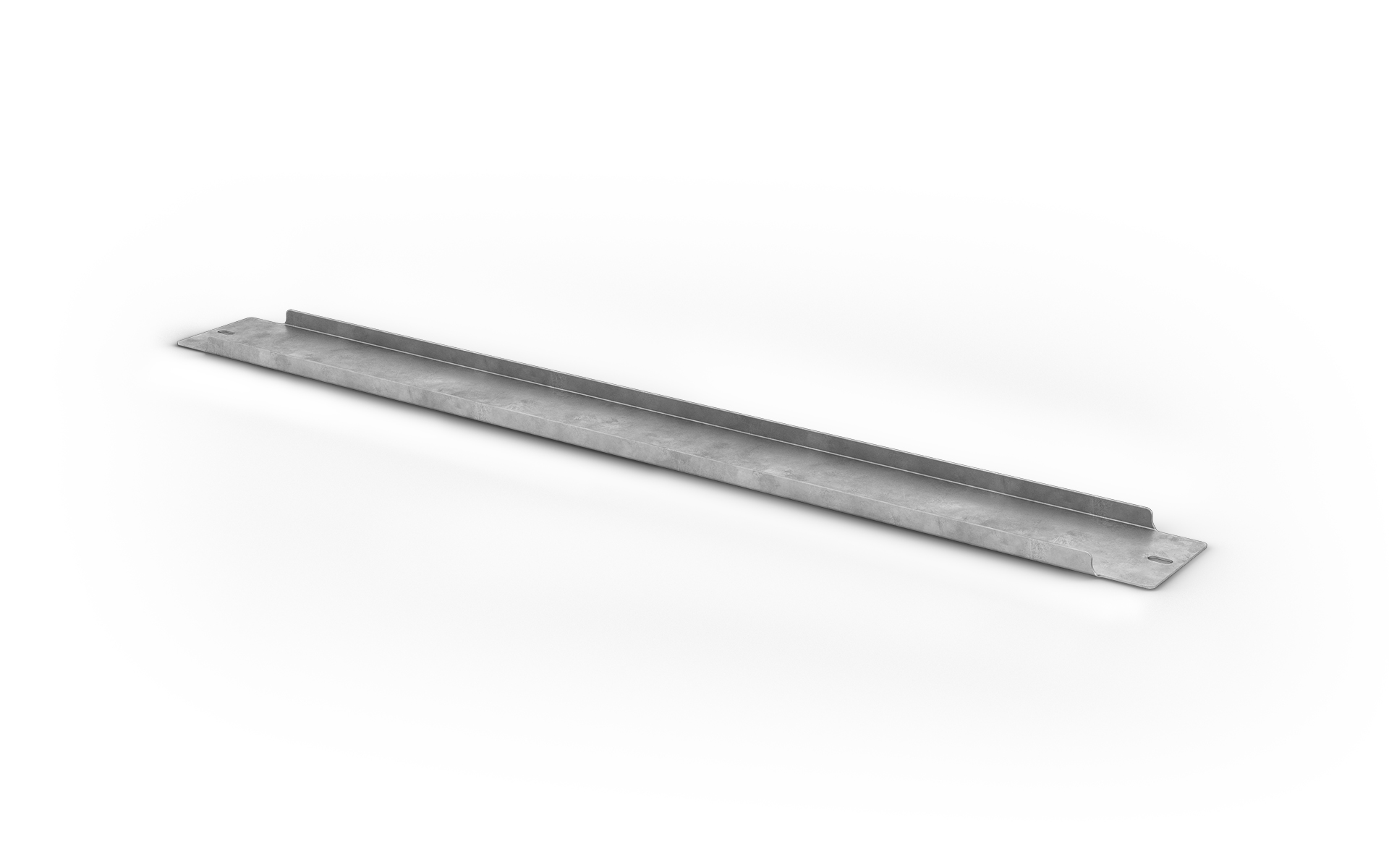

Kick strip with height 100 mm can be mounted to Universal Railing, Standard.

Name Length (mm) Part no. Stocked
Kick strip 390 SL0410
Kick strip 490 SL0510
Kick strip 690 SL0710
Kick strip 990 SL1010
Kick strip 1490 SL1510
Kick strip 1990 SL2010
Kick strip, Corner railing 335,6 x 335,6 SL4040

The gate consists of a handrail provided with at least two hinges and a so-called box lock. If the lock function is not needed, the lock plate can be used as a stop. The gate is adjustable between 600-900 mm. For large gate openings and heavy traffic, it could be advisable to have an extra hinge. At least two hinges (set) are needed per gate.

As an alternative, you can use a railing section as a gate.

Baluster/top rail: ø 42 mm
Bottom rail: ø 28 mm
Height: 1100 mm
Surface treatment: Hot dip galvanized

Name Part no. Stocked
Box lock aluminium BX0001
Bracket box lock BX0002
Lock plate box lock BX0004
Hinge complete GJ4200
Hinge complete tube/wall GJ4202
Gate arc UG6090

Surface treatment

Our universal railings are hot dip galvanized as standard. In our own plant, the railings are surface treated to withstand great stress. The method provides a very robust protection against corrosion. For more information, please visit our page for surface treatment.

Hot dip galvanized
