SECTIONAL RAILING, PLANNING AND DESIGN

The railings are normally delivered from stock and are easily adapted by the fitter. This makes it possible to install without making detailed measurements prior to delivery. If the railings are to be delivered customised from the factory, each sectional railing is drawn up specially and the drawing is sent to the customer for approval prior to manufacturing.


Filtration

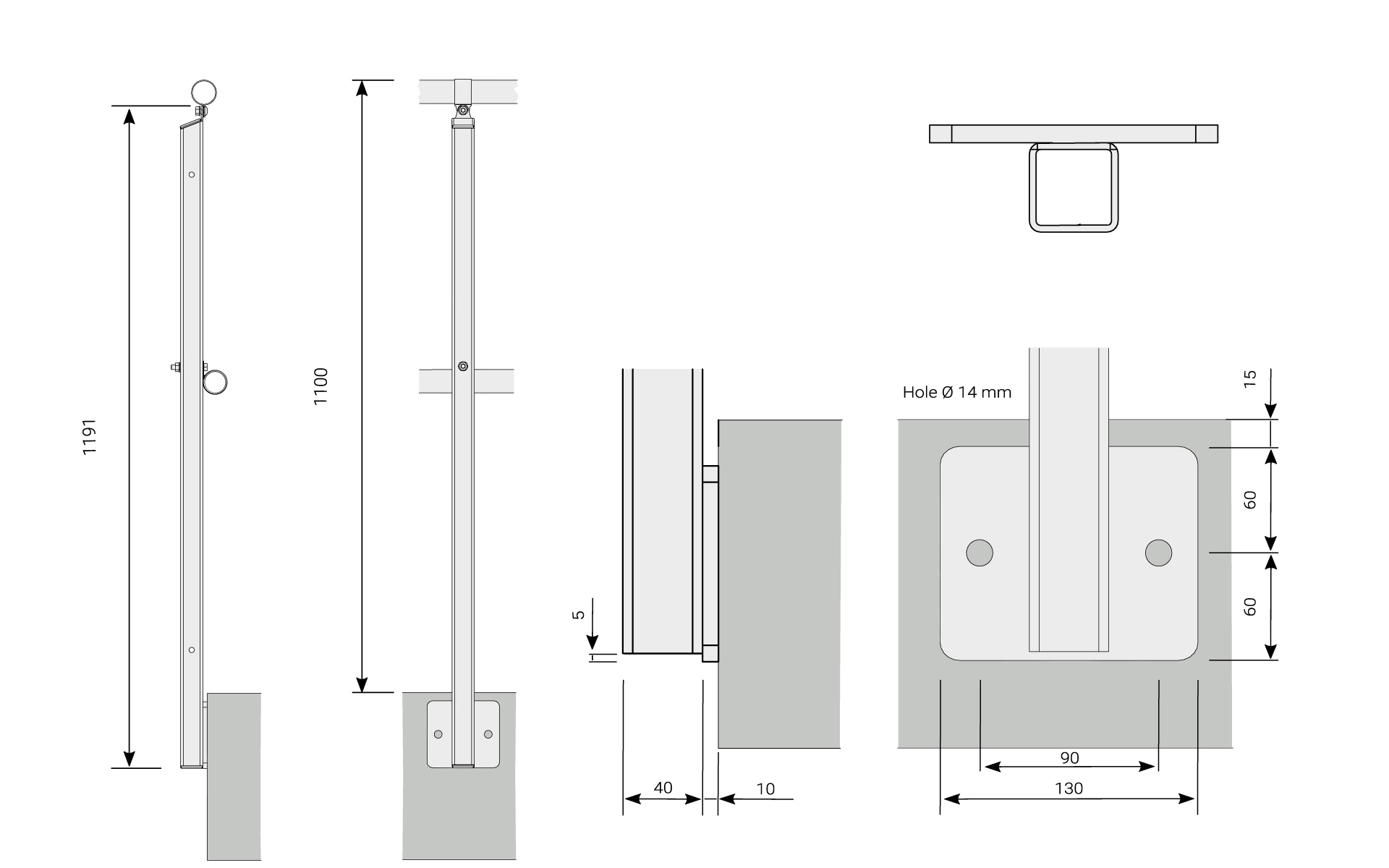

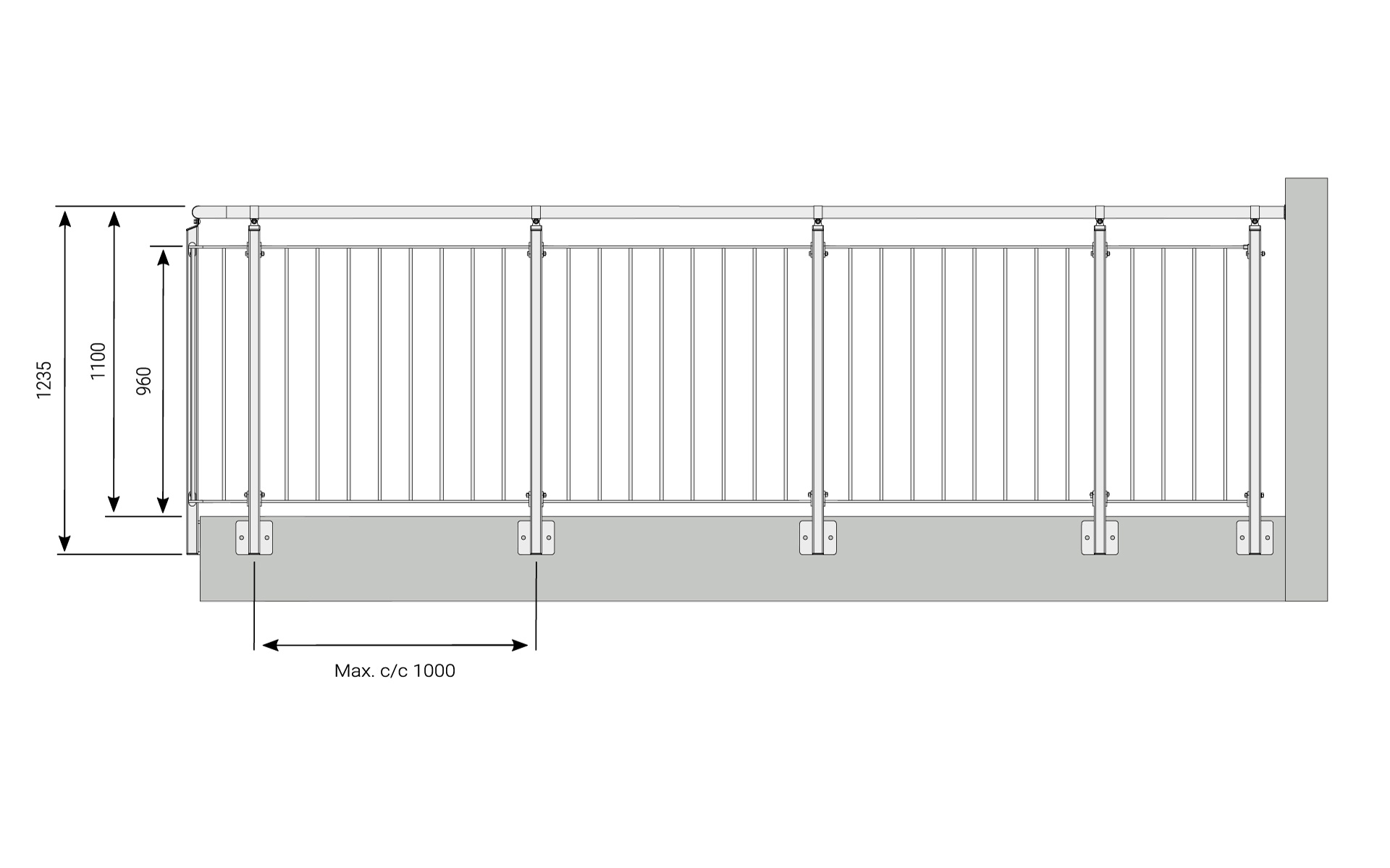

Side installation

Balusters and brackets for side mounting.
Here, there are a number of different standard versions. For fixing to concrete, a baluster with base plate welded on is used. For fixing to our Flex gangways, a railing baluster without base plate and only through holes is used. For our mezzanines, an extended railing baluster is needed, these are also available as standard in a number of different lengths.

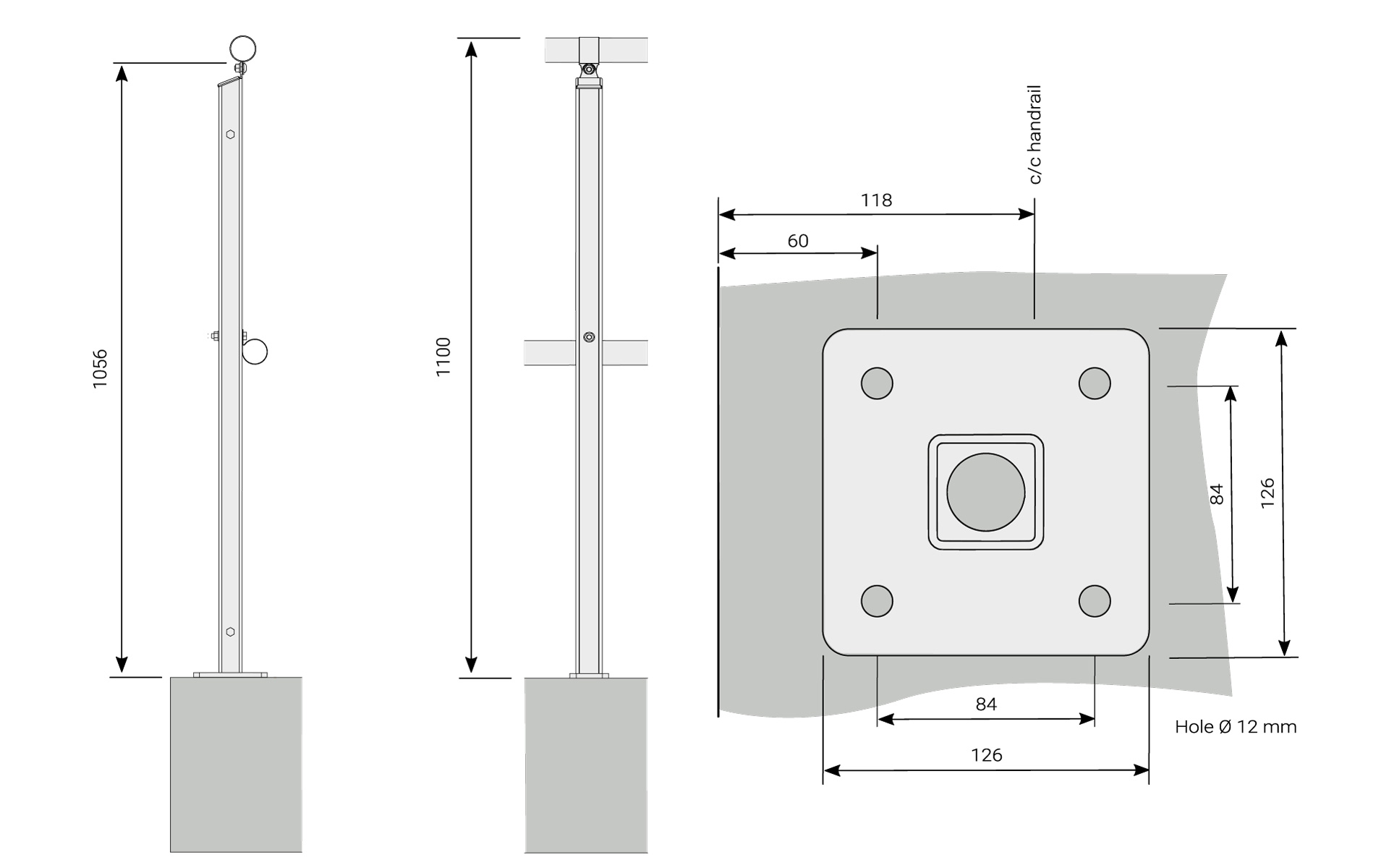

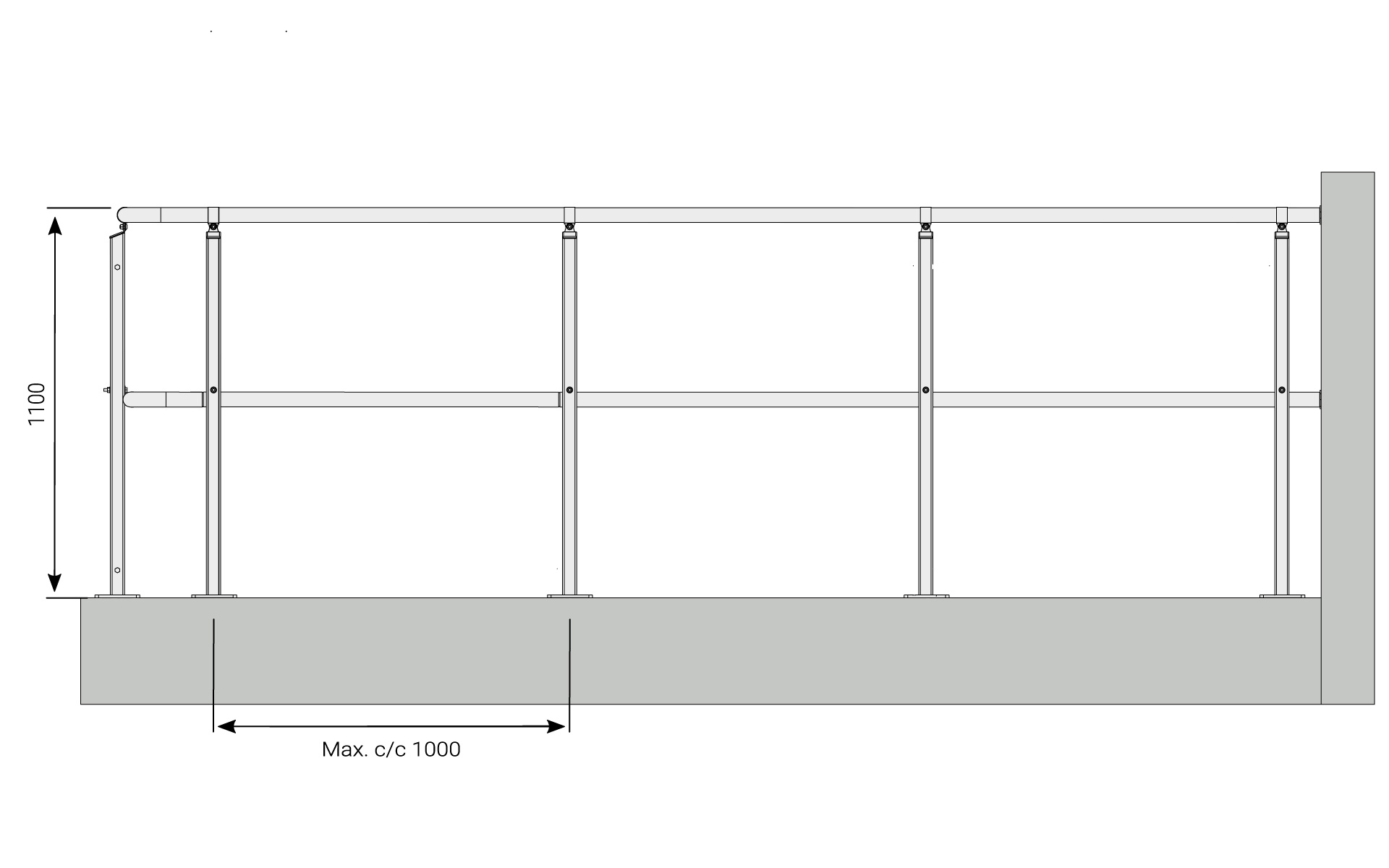

Top Installation

Baluster and fixing for top installation.
The baluster is manufactured with a base plate at the bottom.

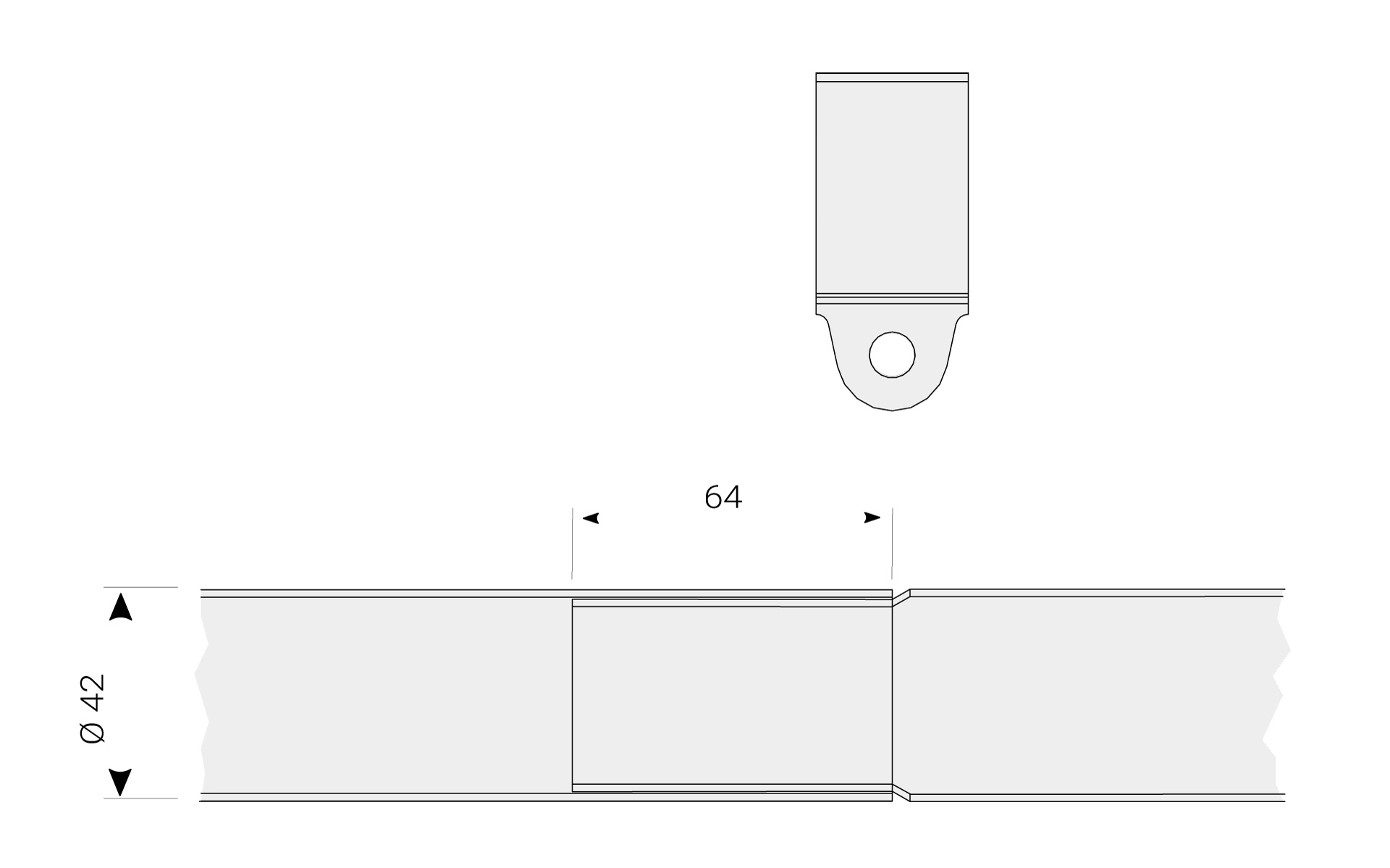

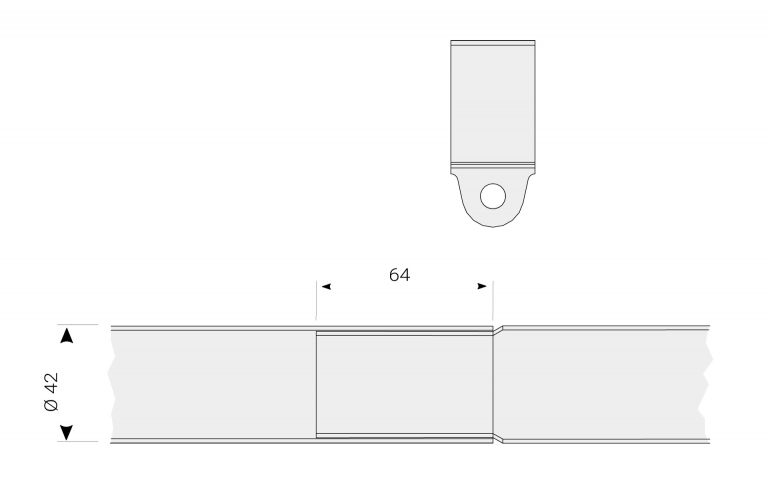

Clamp for handrail

The joint is placed so it is covered by the handrail clamp.


U-bolt for intermediate railing

The U-bolt is attached through the railing post and holds the intermediate railing in place.


Wall mount

Wall mount for fixing the handrail to the wall.


Kick strip

Kick strip for railing with intermediate rail. Height 130 mm. Delivered in 3 metre lengths. Includes drill screw.

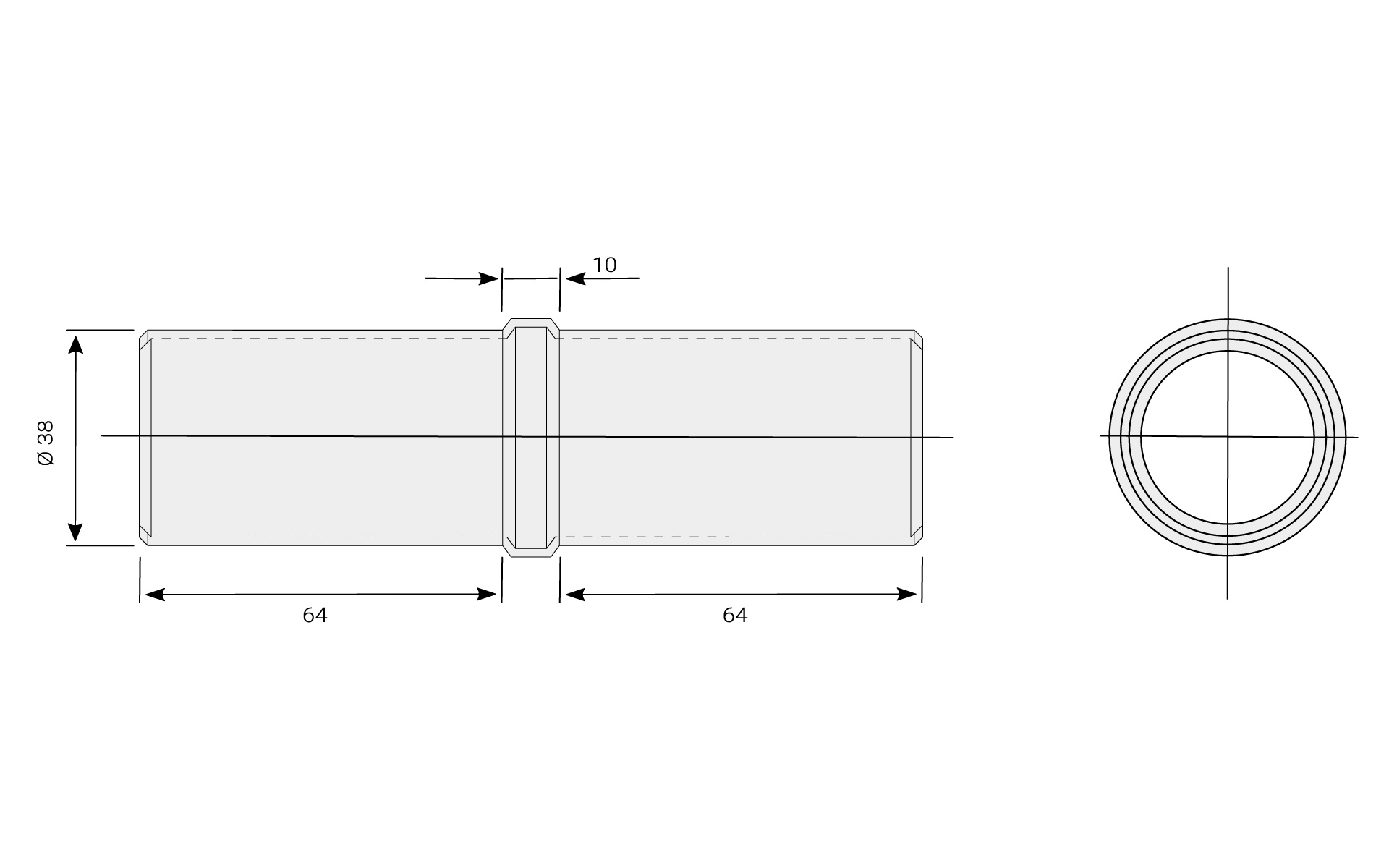

Joint plate

Joint plate for 42×1.5 mm stainless steel handrail.

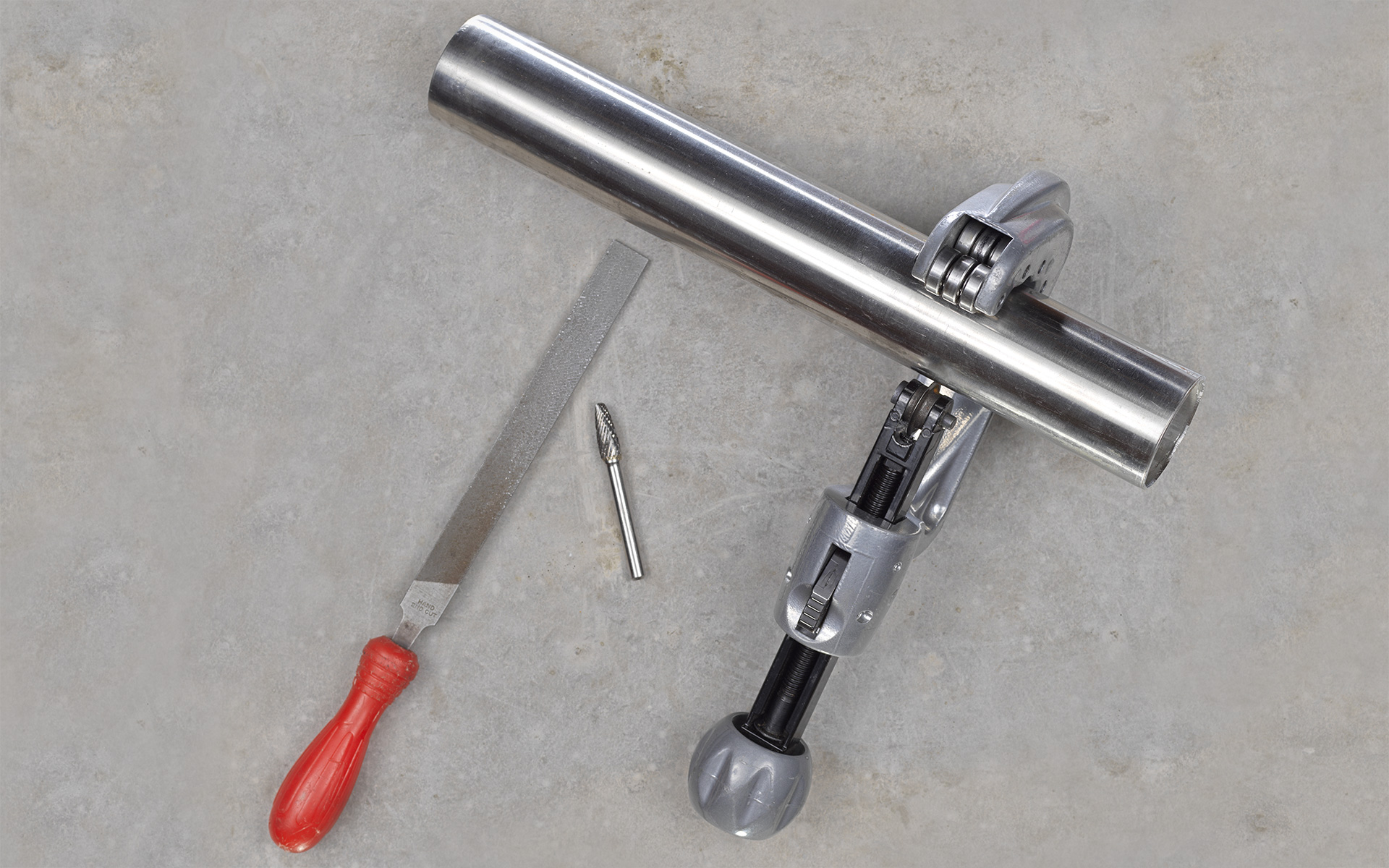

Cutting railing handrails to size

Suitable tool for adjusting length of stainless steel tube.

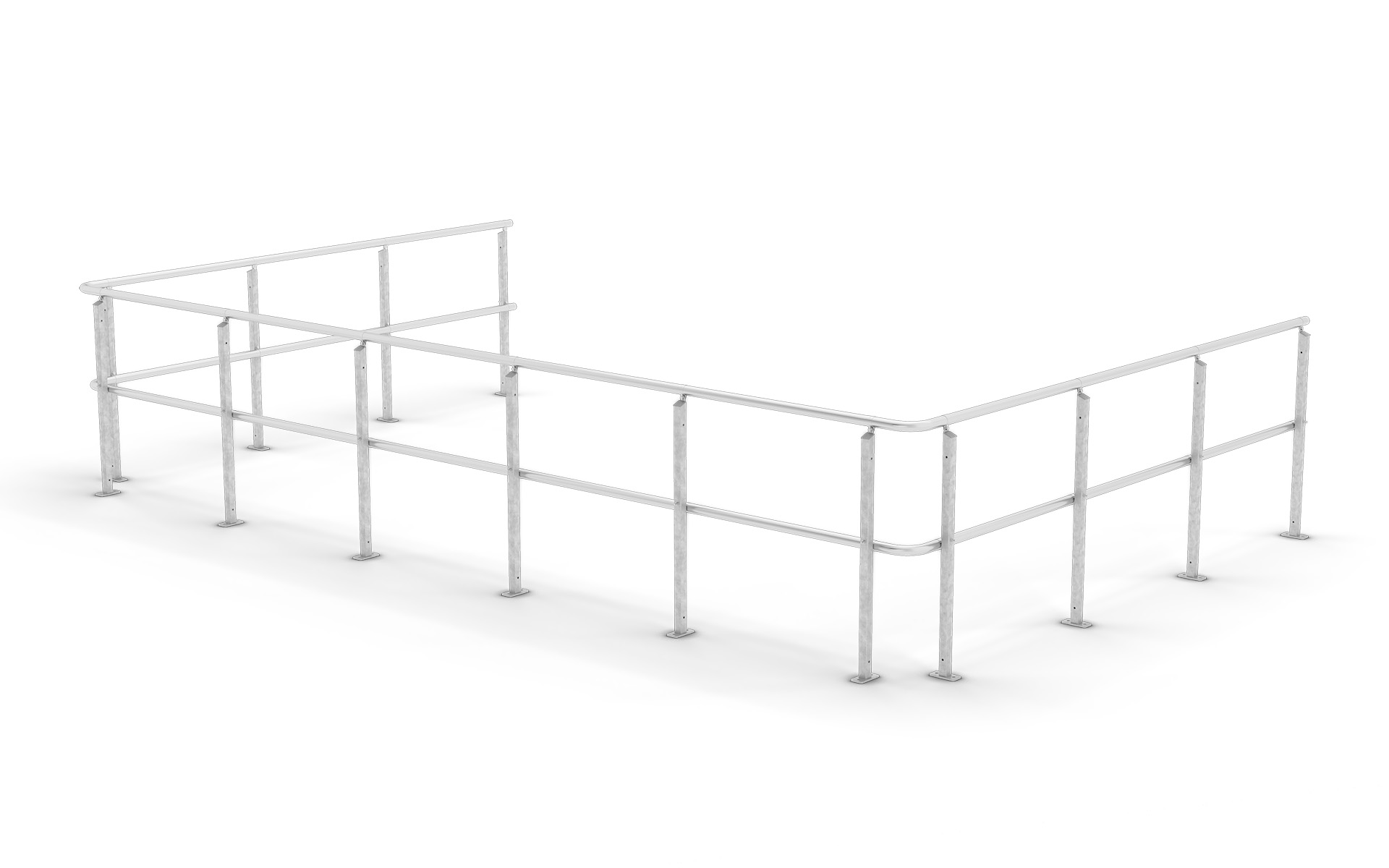

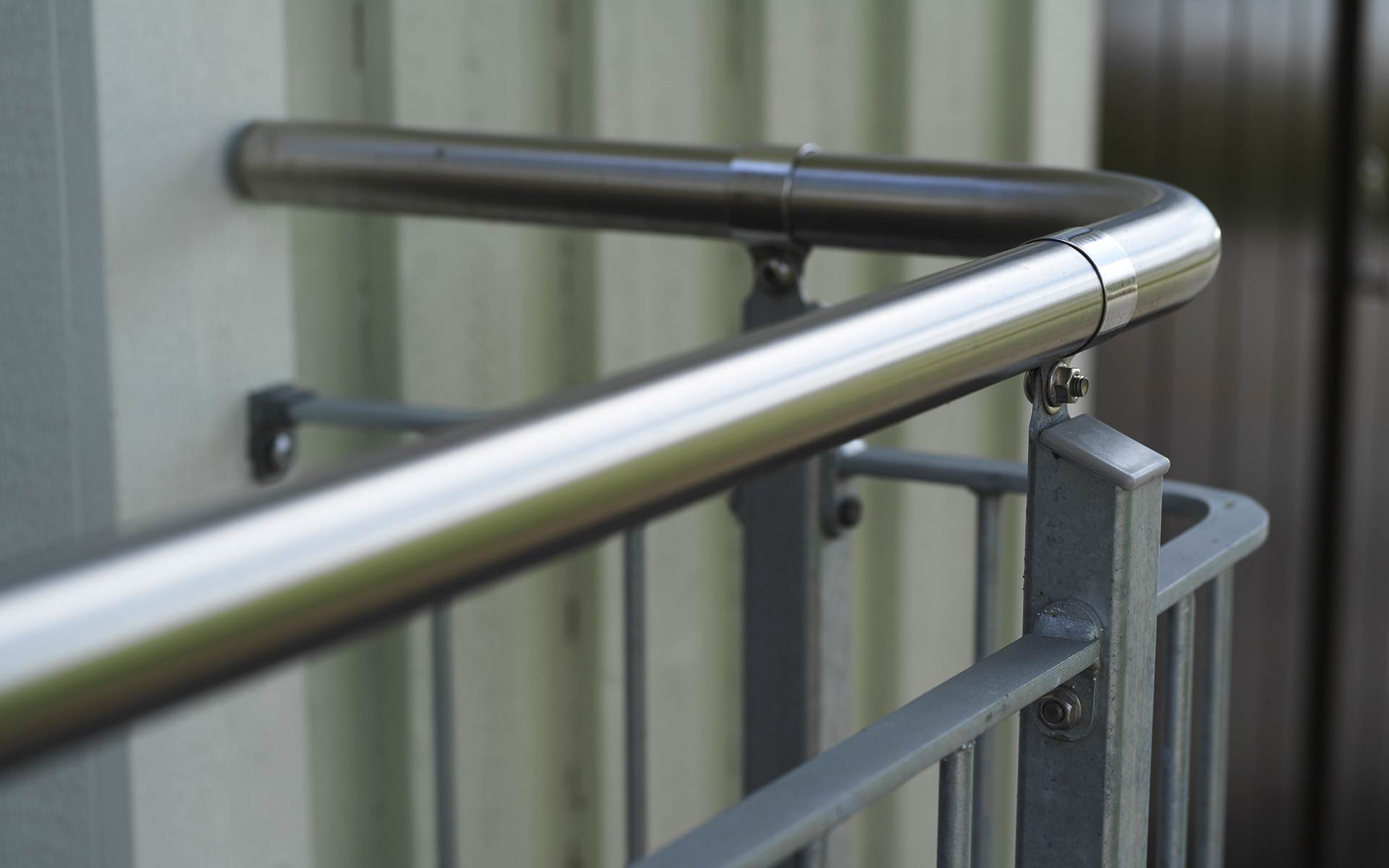

Corner railing

For our sectional railing, we also off corner railing. These are stocked for sectional railing Intermediate and Round Bar.  We also offer solutions with a pivotable handrail.


Railing infill

Additional information about our range of railing infills.

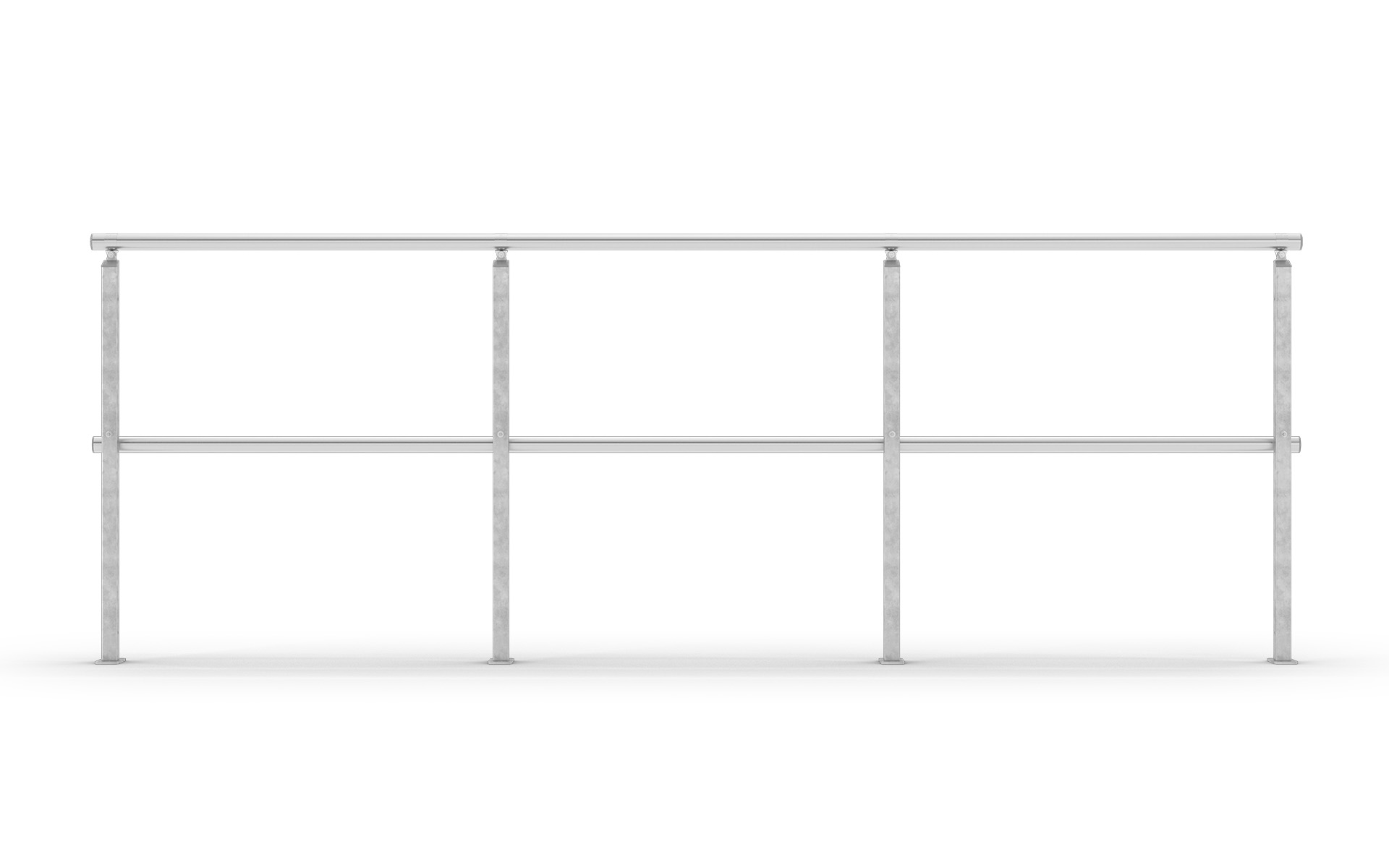

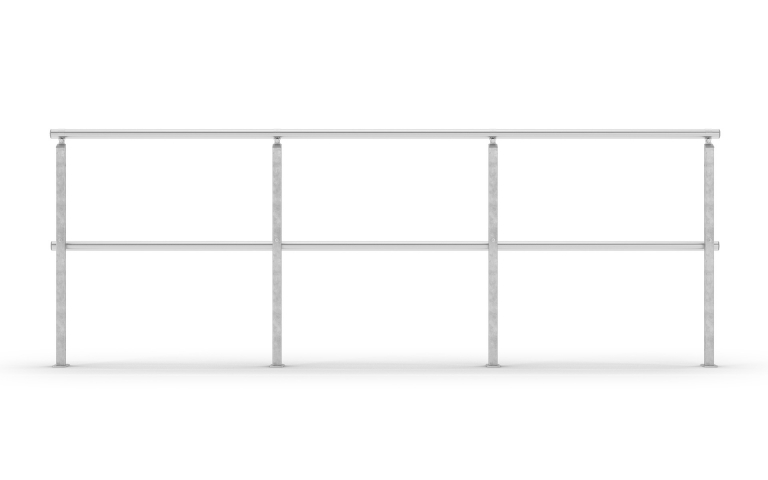

Intermediate rails are made of untreated ø42 mm stainless steel and are attached using stainless steel clamps.

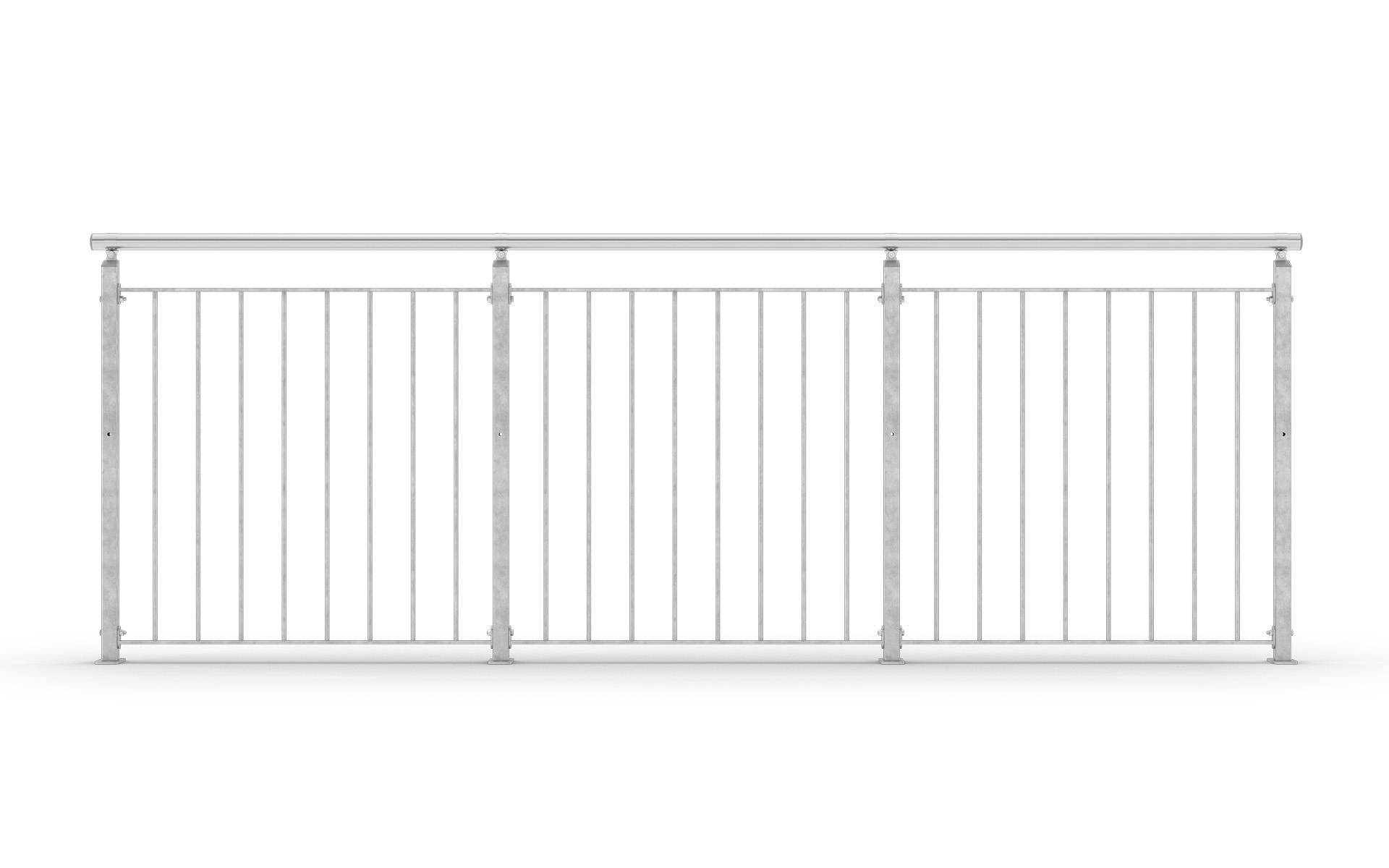

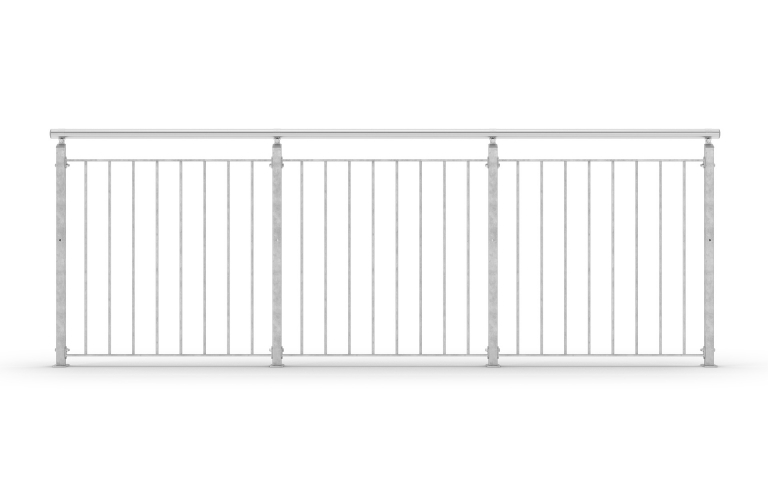

The railing infill comprises 25×8 mm flat-steel top and bottom rails. Round bars ø11 mm. Max. opening 100 mm.

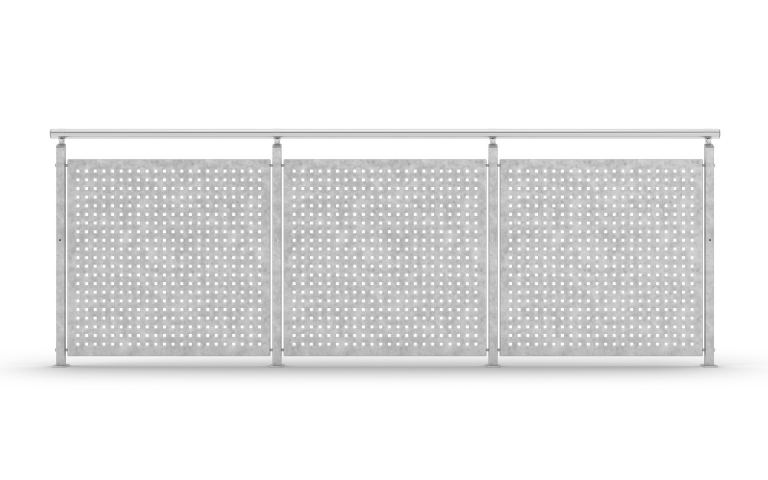

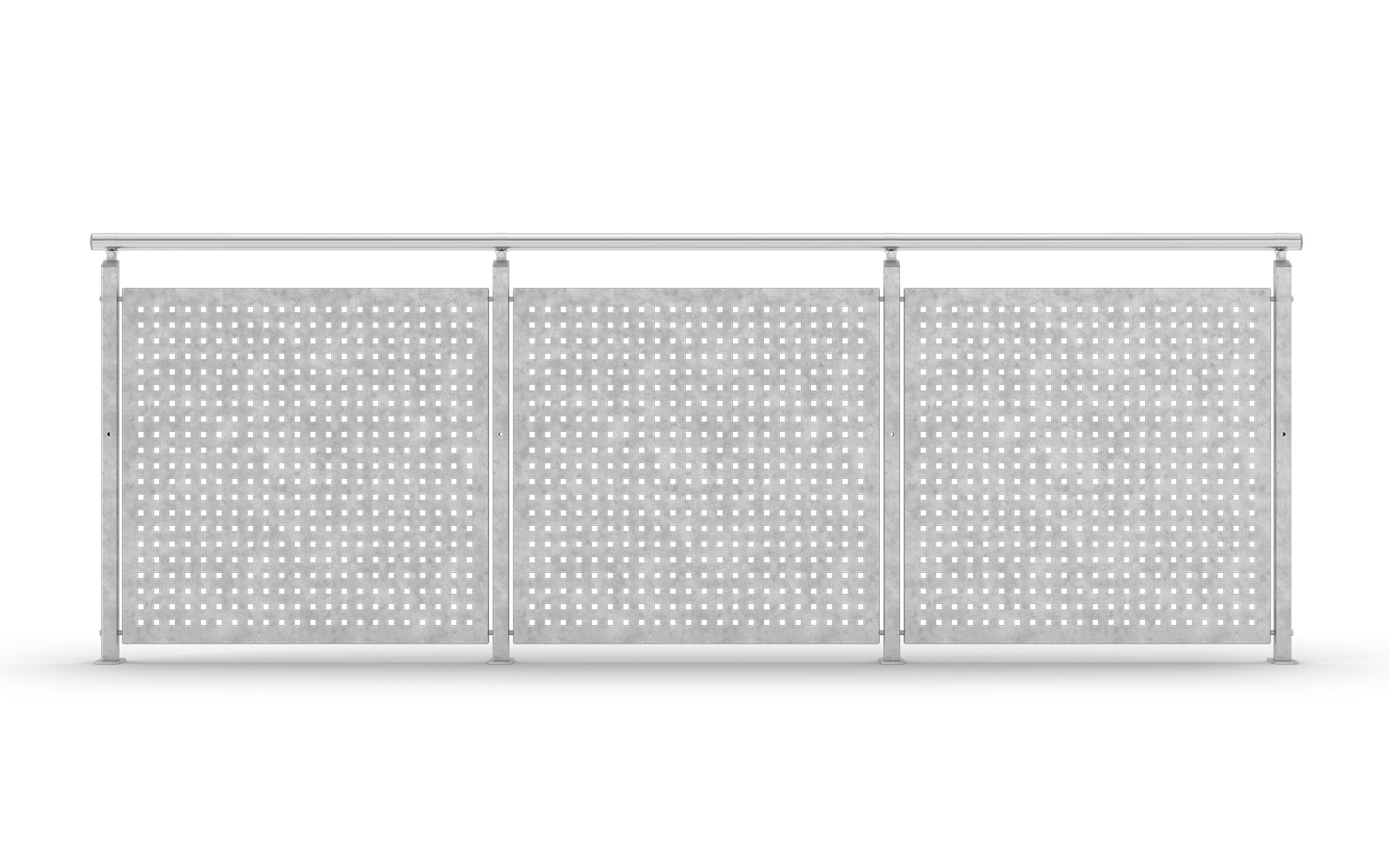

We offer perforated sheet metal with a choice of hole patterns as standard.
Our most common patterns:

  • ø15, square pattern c/c 40
  • 15×15, square pattern c/c 40
  • ø20, square pattern c/c 50
  • 20×20, square pattern c/c 50
  • ø15, triangular pattern c/c 50
  • ø20, triangular pattern c/c 60

Other options are available.

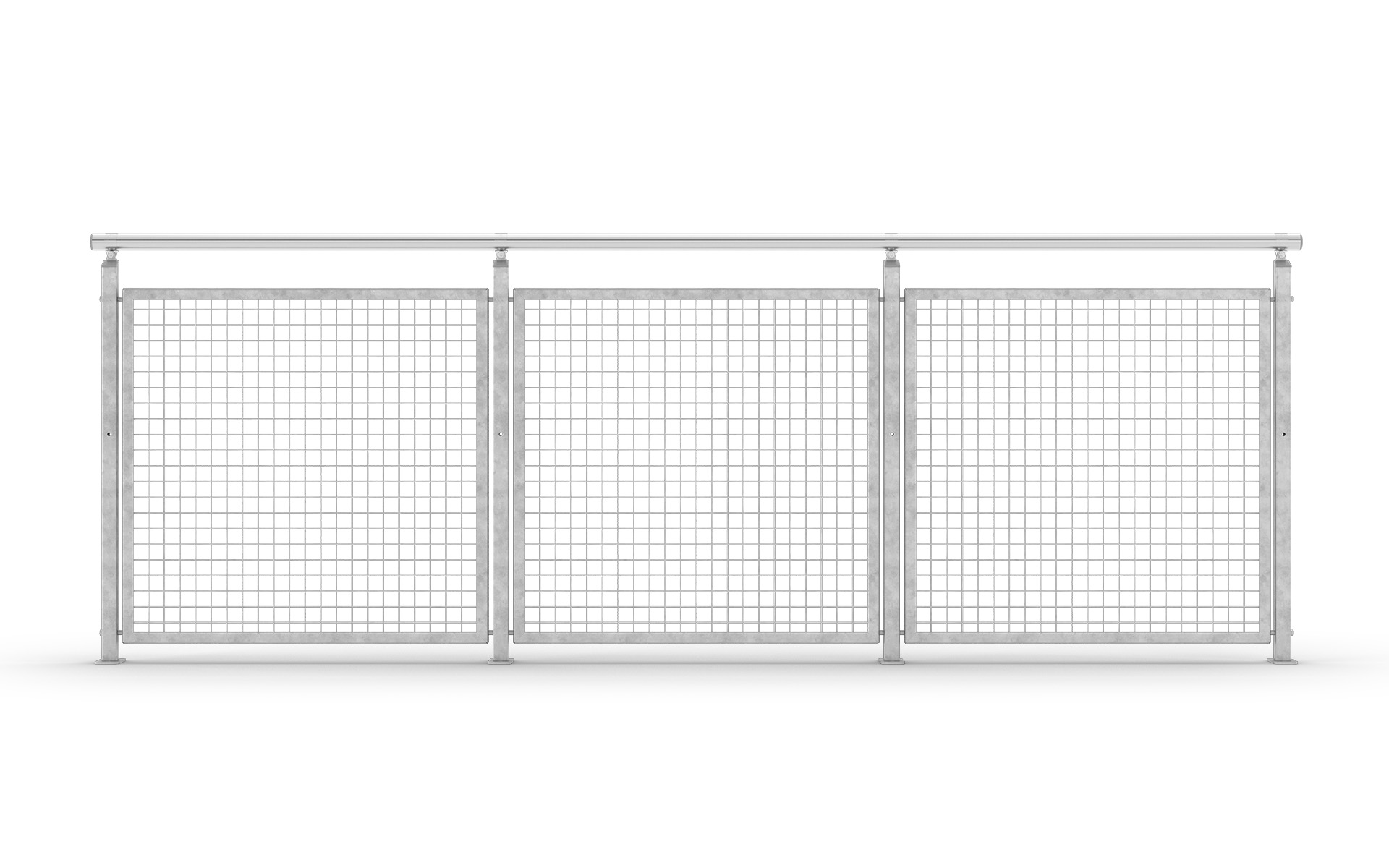

Woven wire mesh with standard 40×40 mm apertures. 30×30 mm apertures also available.

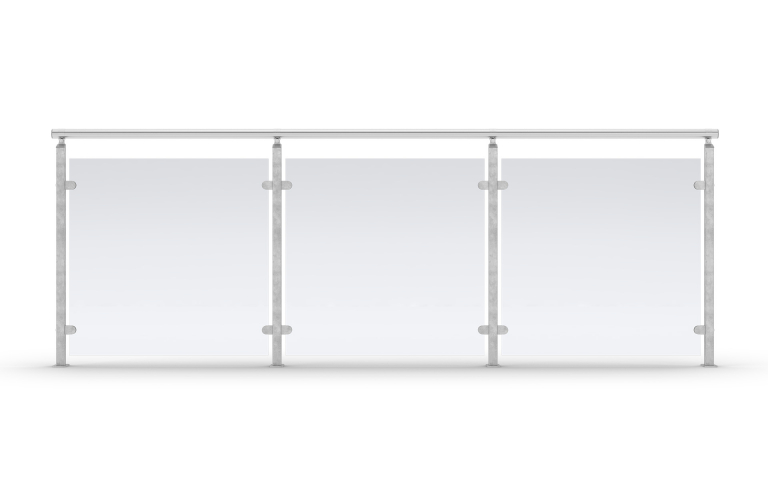

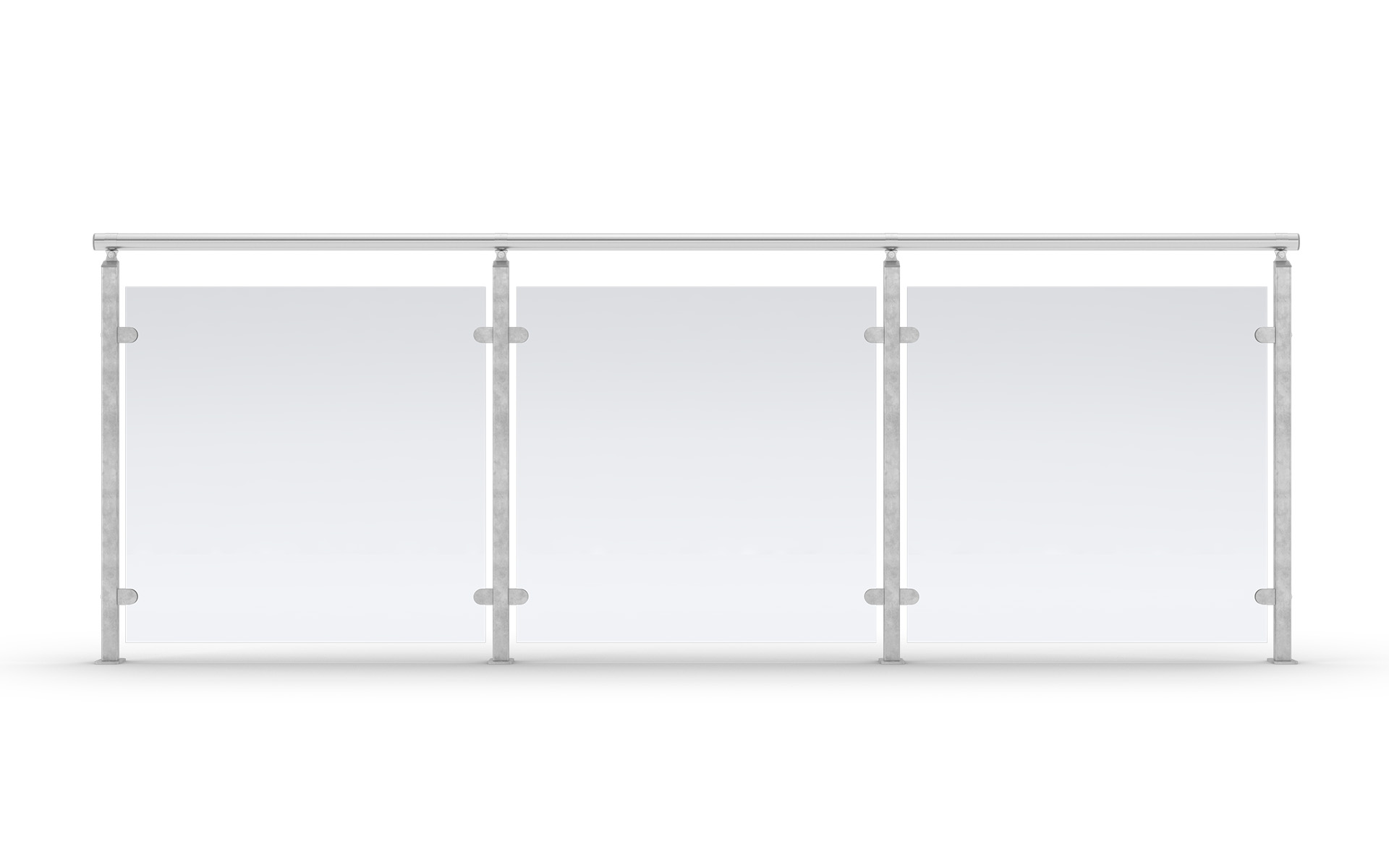

Laminated glass 8 mm (4+4) incl. foil. Fine-ground edge on all sides. Clamp brackets for railing baluster.


Film sectional railing assembly


Handrail

As standard handrails are made of stainless steel tube, ø 42 mm. For wood handrails, the handrail is ø 50 mm as standard.

Since 2003, we have used stainless steel handrails in our sectional railings.
We see a number of customer benefits in this, such as a more beautiful product with an even higher sense of quality. Combined with our modern production park, the stainless steel handrail also contributes to very fast delivery times.
Many years of experience with a proven method and a good relationship between anode and cathode where the results do not show any rust, make us very confident that the relationship between hot-dip galvanized and stainless does not cause any corrosion.
