FIRE EXTINGUISH GRATINGS
Weland Fire Extinguish Grating is a grating with the ability to suffocate a fire and can extinguish an oil fire in three seconds. The grating has been specially developed for fire extinguishing pits, for example, in transformer substations.

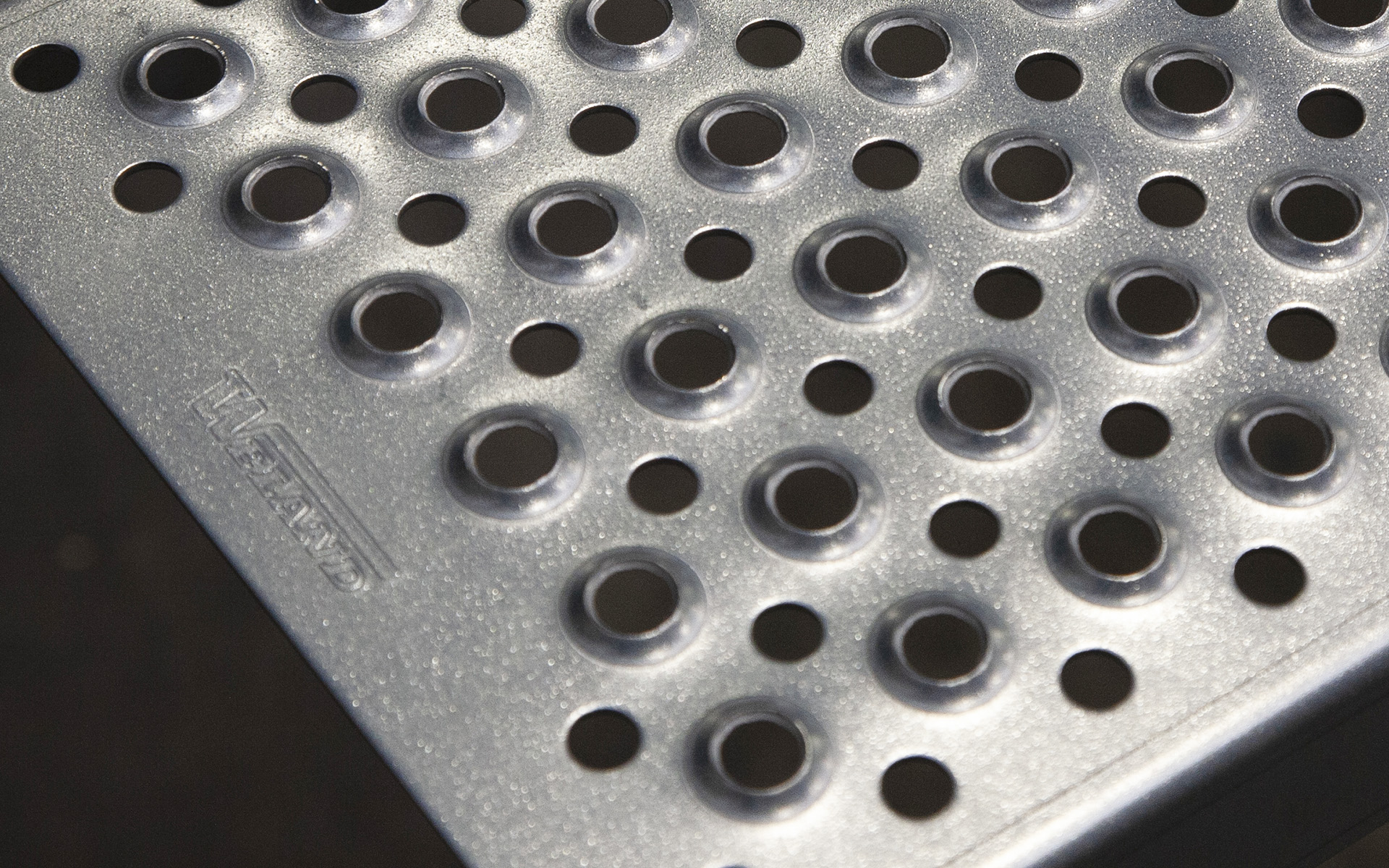

Thanks to its unique design, Weland Fire Extinguish Grating has the ability to put out oil fires rapidly. In the event of a burning oil fire, the oil runs through the perforations in the grating and is quenched thanks to the characteristics of the fire-protection grating.
Fire extinguish gratings
Weland Fire Extinguish Grating is extremely corrosion resistant and is suitable for industrial areas with an aggressive climate. Other uses can be in the offshore and petrochemicals industries. Thanks to lightweight sections, the fire extinguish grating is easy to install and remove, for example, during repairs and maintenance. The grating is non-slip, R11 slip resistance class, and all openings are ø10 mm or less, which means small objects cannot fall through. The grating is dimensioned for a point load of 1.5 kN or a distributed load of 5 kN/m².
Tests performed by the Danish Institute of Fire and Security Technology show very good results with an extinction time of just three seconds. The results also show that there is no damage or discolouration on the product after a fire. Read the report via one of our sales reps.
Order fire extinguishing grating with a lower carbon footprint
We offer a range of fire extinguishing grating made from steel that is XCarb-certified – an initiative that seeks to reduce climate impact through the use of a higher proportion of recycled material and fossil-free electricity in the manufacturing process. Because access to appropriate materials is currently limited and has a tendency to fluctuate, this is not something we offer as standard.
Are you interested in XCarb-certified steel?
Get in touch and we’ll help you explore what the options are for your particular project.
Weland Fire Extinguish Grating is pattern protected (no. 005650389). Patent no. 36269090.
Standard Fire Extinguish Grating
In most cases, the Weland Fire Extinguish Grating is delivered complete, including support sections.
Extinguishing grating is fabricated as standard in profile widths of 150 mm. Including the lower layer, the outer width of the profile is 296 mm. Maximum length is 3980 mm.
Angle bar seating profiles are supplied. Carrier lines and support legs are included in the delivery.
Using start and end profiles, we are able to customise the total width of the fire extinguishing grating.
Accessories
As accessories, there are diverse parts that simplify operation and examination in the pit.
If earthing is of interest, we can offer threaded holes, e.g. for earthing braid.
To gain easy access below the extinguishing grating, we offer an inspection hatch. During assembly, additional support lines are delivered and, in those cases where the pit is deep, a ladder is also delivered for easier accessibility.
Surface treatment
All material is galvanized. For more information, please visit our page for surface treatment.
Hot dip galvanized
