LANDINGS

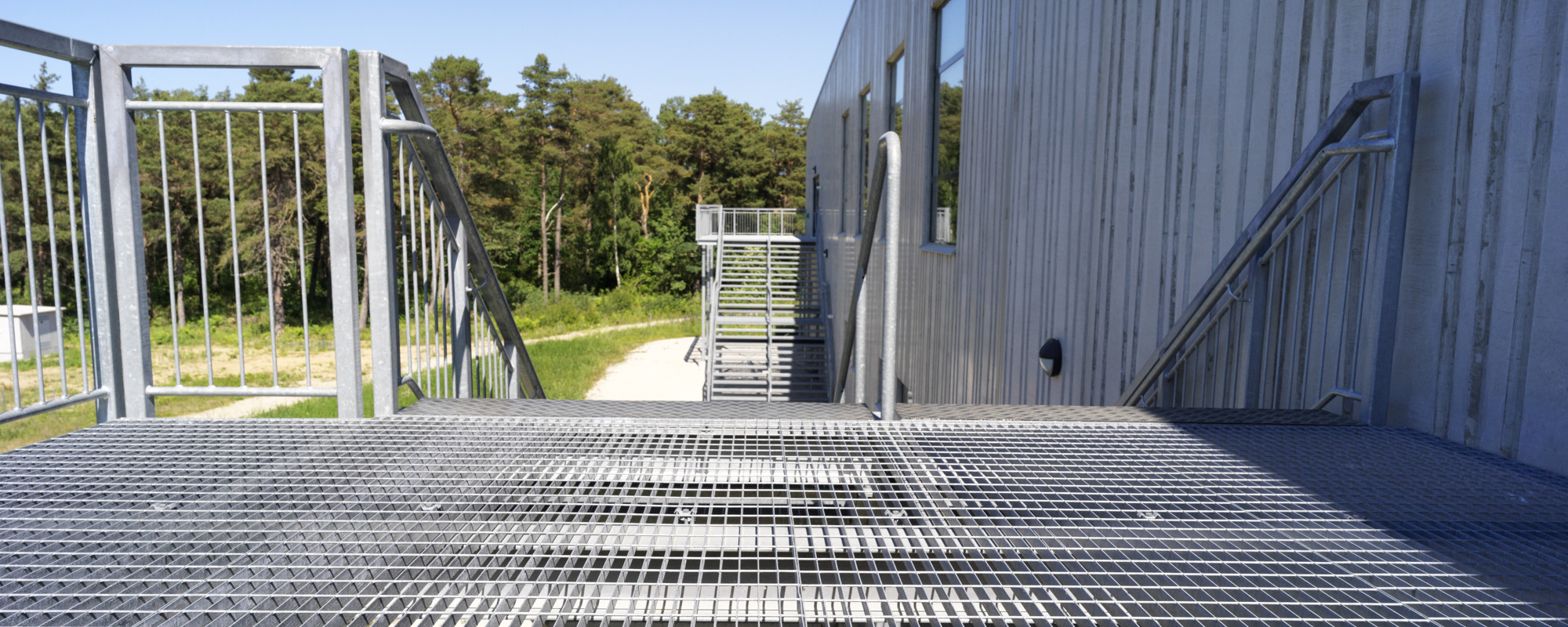

We offer landings made in grating and slit plank type flooring. The majority of our landings are kept in stock for immediate delivery.

Weland manufactures landings in several different materials. Many of the landings are stocked for immediate delivery. Custom-made landings are manufactured according to measurements from the customer and are made to order.

Landings

Weland manufactures landings from grating in several different mesh width openings and materials. We also offer landings made of slit plank type flooring. Please contact us for more information about different mesh widths and alternative versions.

TH6 is manufactured from grating with a mesh width opening c/c 34 x 75 mm.
Finish: Hot dip galvanized


Format L x D (mm) Part no. Stocked
500 x 500 148805051
500 x 700 148805071
500 x 1000 148805101
600 x 500 148806051
600 x 700 148806071
600 x 1000 148806101
700 x 500 148807051
700 x 700 148807071
700 x 1000 148807101
800 x 500 148808051
800 x 700 148808071
800 x 1000 148808101
900 x 500 148809051
900 x 700 148809071
900 x 1000 148809101
1000 x 500 148810051
1000 x 700 148810071
1000 x 1000 148810101
1100 x 500 148811051
1100 x 700 148811071
1100 x 1000 148811101
1200 x 500 148812051
1200 x 700 148812071
1200 x 1000 148812101
1300 x 500 148813051
1300 x 700 148813071
1300 x 1000 148813101
1400 x 500 148814051
1400 x 700 148814071
1400 x 1000 148814101
1500 x 500 148815051
1500 x 700 148815071
1500 x 1000 148815101
1600 x 500 148816051
1600 x 700 148816071
1600 x 1000 148816101
1800 x 1000 148818101

TSD is manufactured from slit plank type flooring. The serrated top provides very good anti-slip protection and lets through dirt, oil and other spillages.
Finish: Hot dip galvanized


Format L x D (mm) Part no. Stocked
501 x 500 TSD05051
501 x 700 TSD05071
501 x 1000 TSD05101
606 x 500 TSD06051
606 x 700 TSD06071
606 x 1000 TSD06101
696 x 500 TSD07051
696 x 700 TSD07071
696 x 1000 TSD07101
801 x 500 TSD08051
801 x 700 TSD08071
801 x 1000 TSD08101
906 x 500 TSD09051
906 x 700 TSD09071
906 x 1000 TSD09101
996 x 500 TSD10051
996 x 700 TSD10071
996 x 1000 TSD10101
1101 x 500 TSD11051
1101 x 700 TSD11071
1101 x 1000 TSD11101
1206 x 500 TSD12051
1206 x 700 TSD12071
1206 x 1000 TSD12101
1296 x 500 TSD13051
1296 x 700 TSD13071
1296 x 1000 TSD13101
1401 x 500 TSD14051
1401 x 700 TSD14071
1401 x 1000 TSD14101

Accessories

Nuts and bolts for stair treads. Standard pack = 100/carton.


Dimensions Part number Stocked
M12 x 25 16412251
M12 x 40 16412401
