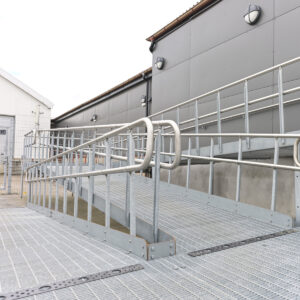

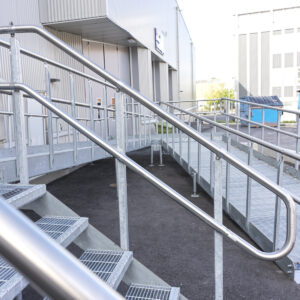

Wheelchair ramp in N6 grating

WHEELCHAIR RAMPS

According to the building standards, there must be an entrance without stairs providing access to public spaces. Weland offers a wide range of stable, safe and easily assembled wheelchair ramps.




Our complete wheelchair ramps are manufactured in grating, including railings, stringers and requisite supporting legs. They are based on a simple, robust design in hot dipped steel, which adds to the stability and long durability. The incline of the gangways is adjustable, but is not permitted to exceed 1:12. Contrast markings are placed on the front edge of the ramp and at the start of the landing. Thanks to stocked standard components, we guarantee short delivery times.

Wheelchair ramps

Complete wheelchair ramps with grating are designed according to your situation and wishes. We stock many different versions in order to provide prompt, reliable and high quality delivery. The standard width is 1300 mm and this is stocked in lengths from 1500 up to 6000 mm in intervals of 500 mm.

Wheelchair ramp with railings on both sides of the ramp.
Finish: Hot dip galvanised

Name Dimensions WxL (mm) Part no. Stocked
Gangway for disabled people 1300x1500 174151311
Gangway for disabled people 1300x2000 174201311
Gangway for disabled people 1300x2500 174251311
Gangway for disabled people 1300x3000 174301311
Gangway for disabled people 1300x3500 174351311
Gangway for disabled people 1300x4000 174401311
Gangway for disabled people 1300x4500 174451311
Gangway for disabled people 1300x5000 174501311
Gangway for disabled people 1300x5500 174551311
Gangway for disabled people 1300x6000 174601311

Wheelchair ramp with rail on one side and banister fitted along adjoining wall.
Finish: Hot dip galvanised

Name Dimensions WxL (mm) Part no. Stocked
Gangway for disabled people 1300x1500 174151321
Gangway for disabled people 1300x2000 174201321
Gangway for disabled people 1300x2500 174251321
Gangway for disabled people 1300x3000 174301321
Gangway for disabled people 1300x3500 174351321
Gangway for disabled people 1300x4000 174401321
Gangway for disabled people 1300x4500 174451321
Gangway for disabled people 1300x5000 174501321
Gangway for disabled people 1300x5500 174551321
Gangway for disabled people 1300x6000 174601321

Wheelchair ramp with banister fitted along the wall on both sides.
Finish: Hot dip galvanised

Name Dimensions WxL (mm) Part no. Stocked
Gangway for disabled people 1300x1500 174151322
Gangway for disabled people 1300x2000 174201322
Gangway for disabled people 1300x2500 174251322
Gangway for disabled people 1300x3000 174301322
Gangway for disabled people 1300x3500 174351322
Gangway for disabled people 1300x4000 174401322
Gangway for disabled people 1300x4500 174451322
Gangway for disabled people 1300x5000 174501322
Gangway for disabled people 1300x5500 174551322
Gangway for disabled people 1300x6000 174601322

If you choose to make the railing yourself, we provide a wheelchair ramp without railing and banister.
Finish: Hot dip galvanised

Name Dimensions WxL (mm) Part no. Stocked
Gangway for disabled people 1300x1500 174151300
Gangway for disabled people 1300x2000 174201300
Gangway for disabled people 1300x2500 174251300
Gangway for disabled people 1300x3000 174301300
Gangway for disabled people 1300x3500 174351300
Gangway for disabled people 1300x4000 174401300
Gangway for disabled people 1300x4500 174451300
Gangway for disabled people 1300x5000 174501300
Gangway for disabled people 1300x5500 174551300
Gangway for disabled people 1300x6000 174601300

Railings

In our standard assortment, we offer two different types of railing.

Railing, Standard

A stocked standard railing with baluster c/c 500 mm.

Railing, Round Bar

A stocked childproof railing with maximum opening 100 mm.

Accessories, railings

To increase the accessibility and safety of the wheelchair ramps, they can be provided with extended handrails. The handrails can be extended by 300 mm at the stand and finish of the ramp.

Round Bar Railing can be equipped with an extra handrail. The extra handrail helps to increase the safety of the wheelchair ramp. The handrail is placed below the normal handrail.

To increase the accessibility and safety of the wheelchair ramp, they can be provided with a banister. The banister is fitted on the wall.

To create a decorative and pleasing milieu, our wheelchair ramps can be provided with lighting. Lighting from the handrail can also act as a functional addition to light up unsafe environments.


Landings

We keep in stock standard landings in grating for our wheelchair ramps. These landings are also used as intermediate or turning landings between two gangways. According to current regulations, intermediate landings have to be used when wheelchair ramps are longer than 6 metres. All material is hot dip galvanised as standard.

The landing's support frame as well as grating with mesh width c/c 17 x 75 mm.
Finish: Hot dip galvanised

Dimensions LxW (mm) Part no.
1510x2010 174151201
1510x1510 174151151
1110x2010 174111201
1110x1110 174111111

Railing in straight and angled versions as well as kick strip
Finish: Hot dip galvanised



Name Length (mm) Part No.
Railing and kick strip 2000 174200
Railing and kick strip 1500 174150
Railing and kick strip 1100 174110
Railing and kick strip, Corner 1500x1500 174150150
Railing and kick strip, Corner 1100x1100 174110110

Steel tube support legs ø 42 mm in set of 4. A threaded bush is pushed into the tube at the bottom end. A footplate, on which a threaded tube has been welded that matches the threaded bush, provides an adjustment of 30 - 100 mm.
Finish: Hot dip galvanised

Length (mm) Adjustable height top of landing (mm) Part no.
350 H=405-475 1740350
600 H=655-725 1740600
1000 H=1055-1125 1741000

A complete and adjustable support leg with an adjustable length of 480 - 1600 mm. The support leg is made from square tube, KKR 60 x 60 x 3 mm, and is 1450 mm long. The square tube is cut to the requested length in connection with installation.

The support leg is delivered complete with leg, foot, plastic end cap and necessary nuts and bolts.

Support legs must be placed at every 3 metres.

Name Adjustable height (mm) Part no.
Support leg KKR 480-1600 1741650

Surface treatment

Our gangways for the disabled are hot dip galvanised as standard. In our own plant, the ramps are surface treated to withstand great stress. The method provides a very robust protection against corrosion. For more information, please visit our page for surface treatment.

Hot dip galvanised



Documentation

Brochure Gangways for the disabled



Installation instructions Wheelchair ramp
